Mature Embedded System-on-Module Solutions

Digi ConnectCore 6

Digi ConnectCore 6

NXP i.MX6 based surface-mount module solution with scalable, single-/multi-core performance and integrated wireless

  • Scalable Cortex-A9 multi-core performance
  • Independent Cortex-M0+/Cortex-M4 Microcontroller Assist™ subsystem
  • Cost-effective, reliable, low-profile surface-mount module form factor
  • Pre-certified 802.11 a/b/g/n and Bluetooth® 4.0
  • Smart Power Management Architecture with PMIC
  • Android, Yocto Project Linux and Windows Embedded Compact software platform support
  • Reliable design with IEC 60068 and HALT verification
  • Designed for long-term availability
Add to compare
Digi Connect ME®

Digi Connect ME

Secure Network Device Server Module

NRND
  • Integrated 10/100 Mbit Ethernet interface
  • Strong enterprise-grade network security
  • Common family footprint for wired and wireless modules
  • High-speed serial interface (UART)
Add to compare
Digi Connect ME<span>®</span> 9210

Digi Connect ME 9210

Intelligent Ethernet Connectivity in RJ-45 Form Factor

NRND
  • Wired 10/100 Ethernet network interface
  • Industrial operating temperature
  • RJ-45 form factor compatible with Digi Connect Wi-ME
  • Support for Digi Embedded Linux and NET+OS
Add to compare
Digi ConnectCard™ for i.MX28

Digi ConnectCard for i.MX28

NXP/Freescale i.MX28 ARM9 SoM

NRND
  • Cost-effective design in compact form factor
  • 32-bit ARM processor at up to 454 MHz
  • Single/dual 10/100 Ethernet connectivity options
  • Pre-certified 802.11a/b/g/n Wi-Fi + Bluetooth 4.0
  • Support for Yocto Project Linux, Digi Embedded Linux, and Android
Add to compare
Digi ConnectCore<span>®</span> 9P 9215

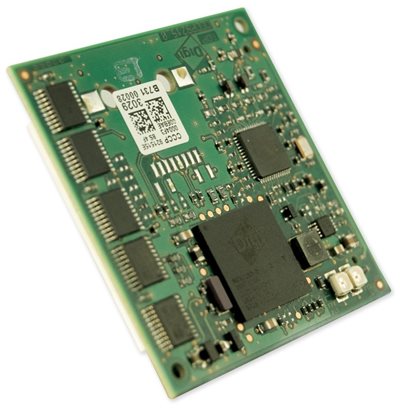

Digi ConnectCore 9P 9215

Highly Integrated, Network-Enabled Core Module

NRND
  • Compact, cost-efficient 150 MHz ARM9 module
  • Secure high-performance Ethernet networking
  • Common family footprint for wired and wireless modules
  • Programmable on-chip interfaces, dynamic power management
Add to compare
Digi ConnectCore® i.MX51 / Wi-i.MX51

Digi ConnectCore i.MX51 / Wi-i.MX51

NXP/Freescale i.MX51 Cortex A8 SoM

NRND
  • Integrated secure wireless 802.11a/b/g/n Wi-Fi LAN
  • Powerful 2D/3D graphics and 720p video
  • Support for Embedded Linux, Microsoft Windows Compact 7, Windows CE 6.0, Android, and Yocto Project Linux
  • Industrial operating temperature
Add to compare
Digi ConnectCore<span>®</span> i.MX53 / Wi-i.MX53

Digi ConnectCore i.MX53 / Wi-i.MX53

NXP/Freescale i.MX53 Cortex A8 SoM

NRND
  • High-performance 32-bit System-on-Module
  • Long-term product availability solution
  • Single and dual 10/100 Mbit Ethernet networking
  • Pre-certified 802.11a/b/g/n Wi-Fi interface
  • High-performance 2D/3D Graphics Processing Unit
  • Hardware video processing with 1080p decoding
  • Low-emission design with FCC Class B compliance
  • Zigbee, cellular and satellite connectivity options
  • Industrial operating temperature support
  • Support for Embedded Linux®, Microsoft Windows® Compact 7, Android™, and Yocto Project® Linux
Add to compare
Rabbit<span>®</span> MiniCore<span>®</span> RCM6700 Series

Rabbit MiniCore RCM6700 Series

Embedded Device Servers

  • Rabbit® 6000 running up to 200 MHz
  • 10/100 Ethernet and pin-compatible with MiniCore 802.11b/g wireless modules
  • 1 MB of internal RAM for program storage
  • Up to 4 MB of serial Flash for data logging or web page storage
Add to compare
RabbitCore<span>®</span> RCM3000 Series

RabbitCore RCM3000 Series

Microprocessor Core Module

NRND
  • Rabbit 3000 microprocessor at 30 MHz
  • Up to 512K Flash/512K SRAM
  • 52 digital I/O and 6 serial ports (IrDA, HDLC, asynch, SPI)
  • 3.3V operation, low power “sleepy” modes (< 2mA)
Add to compare
RabbitCore<span>®</span> RCM3100 Series

RabbitCore RCM3100 Series

Microprocessor Core Module

NRND
  • Rabbit 3000 microprocessor at 30 MHz
  • Up to 512K Flash/512K SRAM
  • 54 digital I/O and 6 serial ports (IrDA, HDLC, asynch, SPI)
  • 3.3V operation, low power “sleepy” modes (< 2mA)
Add to compare
RabbitCore<span>®</span> RCM3209 Series

RabbitCore RCM3209 Series

Microprocessor Core Module

NRND
  • Rabbit 3000 microprocessor at 44 MHz
  • Optional 10/100Base-T Ethernet
  • 512K Flash / 256K SRAM / 512K Program Execution SRAM
  • 52 digital I/O and 6 serial ports for multiple connectivity options
Add to compare
RabbitCore<span>®</span> RCM3400 Series

RabbitCore RCM3400 Series

Microprocessor Core Module

NRND
  • Rabbit 3000 microprocessor at 30 MHz
  • Up to 512K Flash/512K SRAM
  • 8 channel 12-bit A/D with programmable gain
  • 47 digital I/O and 5 serial ports (IrDA, HDLC, asynch, SPI)
Add to compare
RabbitCore<span>®</span> RCM3600 Series

RabbitCore RCM3600 Series

Microprocessor Core Module

NRND
  • Rabbit 3000 microprocessor at 22 MHz
  • Up to 512K Flash/512K SRAM
  • 33 parallel digital I/O with configurable options
  • 4 serial ports (IrDA, HDLC, async, SPI)
Add to compare
RabbitCore<span>®</span> RCM3700 Series

RabbitCore RCM3700 Series

Microprocessor Core Module

NRND
  • Up to 4 serial ports for multiple device connectivity
  • 10Base-T with optional 10/100Base-T Ethernet
  • Up to 512K Flash for code and up to 512K SRAM for data
  • 1 MB of on-board serial Flash utilizing FAT file support
Add to compare
RabbitCore<span>®</span> RCM3900 Series

RabbitCore RCM3900 Series

Microprocessor Core Module

NRND
  • Rabbit® 3000 microprocessor at 44 MHz
  • Extended operating temperature range: -20° C to +80° C
  • 10/100Base-T Ethernet
  • Up to 1 GB microSD hot-swappable storage
Add to compare
RabbitCore<span>®</span> RCM4000 Series

RabbitCore RCM4000 Series

Communications and Control Processor

NRND
  • Rabbit 4000 running at 59 MHz
  • Up to 1 MB (16-bit) Program Flash, 1 MB (16-bit) SRAM, and 32 MB of Flash memory
  • 10Base-T Ethernet (RJ-45 connector)
  • Up to 28 GPIO and up to 5 serial ports
  • 8 channels 12-bit A/D converter
Add to compare
RabbitCore<span>®</span> RCM4100 Series

RabbitCore RCM4100 Series

Microprocessor Core Module

NRND
  • Rabbit 4000 running up to 59 MHz
  • 512K Flash, 256K / 512K Data SRAM
  • Up to 40 GPIO, up to 6 CMOS-compatible serial ports
  • Auxiliary I/O feature for reducing processor bus loading
Add to compare
RabbitCore<span>®</span> RCM4200 Series

RabbitCore RCM4200 Series

Microprocessor Core Module

NRND
  • Rabbit 4000 running at 59 MHz
  • 10/100Base-T Ethernet, RJ-45 jack
  • 512K Flash / 512K Data SRAM
  • 4 MB or 8 MB Serial Flash for data storage
Add to compare
RabbitCore<span>®</span> RCM4300 Series

RabbitCore RCM4300 Series

Microprocessor Core Module

NRND
  • Rabbit 4000 running at 58.98 MHz
  • Supports microSD and microSDHC memory cards, 1 MB SRAM for shared code, 512K of battery-backed SRAM, FAT file organization
  • 10/100Base-T Ethernet, 36 GPIO, 6 serial ports
  • 8 channel 12-bit resolution (RCM4300 only)
  • Embedded web server
Add to compare
