XTend® 900MHz RF Modems

1 Watt/900 MHz stand-alone radio modems


  • Outdoor line-of-sight range up to 40 miles* (with high gain antenna)
  • Outstanding receiver sensitivity (-110 dBm @9600 bps)
How to Buy

Adjustable power output from 100 mW to 1 W; up to 4 W EIRP (with 6 dB antenna) Digi's XTend-PKG RF modems provide everything you need for out-of-the-box serial cable replacement, enabling quick and inexpensive wireless connectivity of electronic devices across a broad range of applications. Simply feed data into one modem and the data is transported to the other end of a long range wireless link. Data security is provided by 256-bit AES encryption (128-bit AES is available outside of North America). If more advanced functionality is needed, the modems support an extensive set of AT and binary commands.

Available in multiple interface options, including RS-232/422/485 and USB, XTend modems are ideally suited for remote monitoring, building automation/security, industrial automation/SCADA, fleet management/asset tracking and sensor data capture.

Specifications XTend®-PKG-R XTend®-PKG-U
PERFORMANCE
INDOOR/URBAN RANGE (W/ 2.1 DB DIPOLE ANTENNA)* Up to 1000 feet (305 m)
OUTDOOR RF LINE-OF-SIGHT RANGE (W/ 2.1 DB DIPOLE ANTENNA)* Up to 9 miles (14 km)
OUTDOOR RF LINE-OF-SIGHT RANGE (W/ HIGH-GAIN ANTENNA)* Up to 40 miles (64 km)
TRANSMIT POWER OUTPUT (SOFTWARE SELECTABLE) 100 mW - 1 W (20 - 30 dBm)
INTERFACE DATA RATE 10 - 230,400 bps (including non-standard baud rates)
RF DATA RATE 10 Kbps to 125 Kbps
RECEIVER SENSITIVITY -110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps)
POWER REQUIREMENTS
SUPPLY VOLTAGE 7 - 28V 7 - 28V
RECEIVE CURRENT 110 mA 100 mA (Self Power)
TRANSMIT CURRENT Up to 580 mA 888 - 480 mA
PIN SLEEP POWER-DOWN 18 mA 17 mA
IDLE CURRENT (VARIOUS CYCLIC SLEEP INTERVALS) 19 - 39 mA 21 - 35 mA (Self Power)
SERIAL PORT SLEEP POWER-DOWN 45mA 45mA
GENERAL
CONNECTION OPTIONS RS-232/422/485, DB-9 USB
DIMENSIONS (L X W X H) 2.75 in x 5.50 in x 1.13 in
(6.99 cm x 13.97 cm x 2.86 cm)
2.75 in x 5.50 in x 1.13 in
(6.99 cm x 13.97 cm x 2.86 cm)
WEIGHT 7.10 oz (200 g) 7.10 oz (200 g)
OPERATING TEMPERATURE -40° C to 85° C (industrial) 0° C to 70° C (commercial)
ANTENNA OPTIONS RPSMA (Reverse Polarity SMA) RPSMA (Reverse Polarity SMA)
IMPEDANCE 50 ohms unbalanced 50 ohms unbalanced
NETWORKING & SECURITY
OPERATING FREQUENCY ISM 902 - 928 MHz
SPREAD SPECTRUM FHSS (Frequency Hopping Spread Spectrum)
MODULATION FSK (Frequency Shift Keying)
SUPPORTED NETWORK TOPOLOGIES Peer-to-Peer (no master/slave dependencies), Point-to-Point, Point-to-Multipoint
CHANNEL CAPACITY 10 hop sequences share 50 frequencies
ENCRYPTION 256-bit AES Encryption (AES algorithm meets Federal Information Processing Standard-197 (FIPS-197))
AGENCY APPROVALS
FCC PART 15.247 MCQ-XBPSX
INDUSTRY CANADA (IC) 1846A-XBPSX
AUSTRALIA RCM

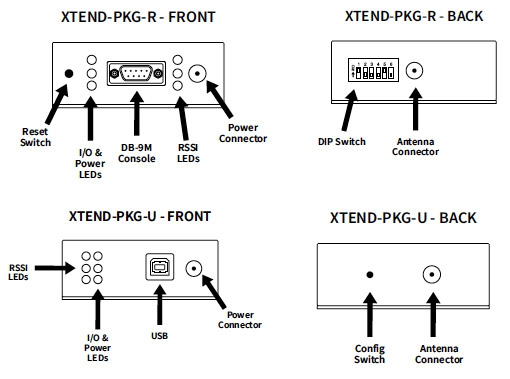

line-art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
