Digi ConnectPort X2 Gateway

Industrial-grade Digi XBee to IP gateways


  • Digi XBee® to Ethernet IP gateways support numerous Digi XBee protocols
  • Industrial-grade enclosures for rugged environments
  • Digi Remote Manager® for secure, scalable access to an unlimited number of remote assets and seamless web services integration from Digi gateways into customer back office applications
How to Buy

Digi ConnectPort® X2 is a small Digi XBee to Ethernet gateway that provides low-cost IP networking of RF devices and sensor networks. Featuring an easy development environment, ConnectPort X2 enables custom applications to run locally while interfacing across existing Ethernet networks for WAN connectivity to the internet.

ConnectPort X2 products feature an end-to-end development environment based on local customization via Python, allowing for rapid M2M-specific application development on the industry standard Python scripting engine.

Digi ESP™ provides an IDE featuring device detection, debugging, compiling and downloading of Python code to Digi gateways.

Gain critical insights into your deployed devices and manage your network with Digi Remote Manager® — the command center for your deployment. Digi Remote Manager (Digi RM) is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and support for hundreds or even thousands of remote Digi devices. Digi RM lets you evaluate, update and configure your Digi enterprise products — and the health of your network — at scale after deployment.

It was a 15-minute discussion with IT to get us approved and live in one of the hospitals.

Chris Hermann, CEO, Clean Hands Safe Hands

Read the full story

Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More

RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.
Specifications Digi ConnectPort® X2
General
Management HTTP/HTTPS web interface, password access control, IP service port control, optional secure enterprise management via Digi Remote Manager®
Python Python 2.4.3
Protocols UDP/TCP, DHCP, SNMPv1
Total Memory 8 MB Flash, 16 MB RAM
LEDs Ethernet status, power, Zigbee® link/activity
Security SSL tunnels
Dimensions
(L x W x H)
13.9 cm x 7.0 cm x 2.9 cm (5.50 in x 2.75 in x 1.13 in);
0.20 kg (0.44 lb)
Wireless Interfaces

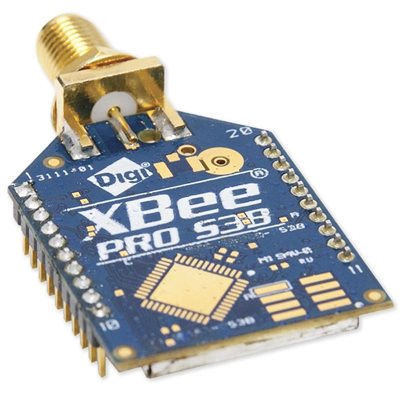

Digi XBee Module Options Zigbee, 900HP
Antenna Port RPSMA female
Ethernet
Ports (1) RJ-45 port
Physical Layer 10/100 Base-T
Data Rate and Mode 10/100 Mbps (auto-sensing); full or half duplex (auto-sensing)
Power Requirements
Power Input 9-30 VDC
Power Supply 12 VDC power supply for 0° C to 60° C (32° F to 140° F) with locking barrel connector included;
Extended temperature power supply available separately
Power Consumption Idle: 1.2 W; Max: 3.4 W
Surge Protection (w/included power supply) 4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4
Environmental
Operating Temperature -30° C to 70° C (-22° F to 158° F)
Relative Humidity 5% to 95% (non-condensing)
Ethernet Isolation 1500 VAC min per IEEE802.3 / ANSI X3.263
Regulatory Approvals
Safety EN60950
Emissions/Immunity CE, FCC Part 15 (Class A)
Warranty
Product Warranty 3-year

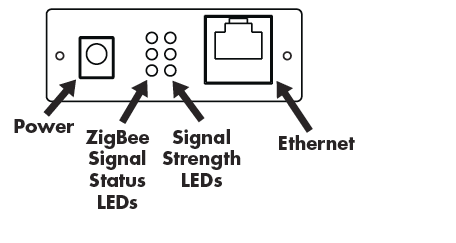

ConnectPort X2 - Side

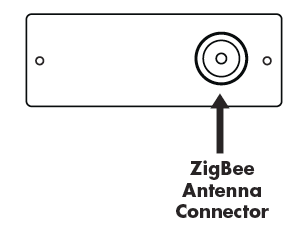

ConnectPort X2 - Side
