| CELLULAR* |
| CERTIFICATIONS |
Visit https://www.digi.com/resources/certifications for latest certifications |

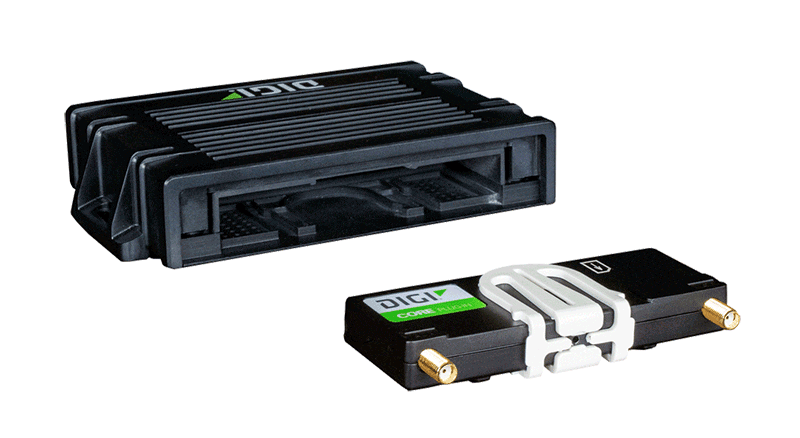

| LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4 |
LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41;
3G: B1, B2, B4, B5, B6, B8, B19;
2G: 850 / 900 / 1800 / 1900 MHz |
| LTE (N4/P4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMF4 |
LTE Cat 4: B2, B4, B5, B12, B13, B14 (FirstNet®), B66, B71;
3G: B2, B4, B5; |
| LTE (M1) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMM1** |
LTE Cat M1/NB1: B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20,B26, B28;
2G: 850 / 900 / 1800 / 1900 MHz |
| LTE-A (16) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CM16 |
LTE-Advanced Cat 6: B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41;
3G: B1, B5, B6, B8, B9, B19, B39 |
| CONNECTORS |
(2) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
| SIM SECURITY |
Secured in cellular module |
| WI-FI |
| MODULE |
1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) |
| AUTHENTICATION |
TACACS+, Enterprise RADIUS |
| MODES |
Client mode and access point mode simultaneously |
| CLIENTS |
Maximum 10 clients (access point mode: regardless of combination of clients and access points) |
| ACCESS POINTS |
Maximum 2 access points (access point mode: regardless of combination of clients and access points) |
| SECURITY |
WPA/WPA-2 personal, WPA/WPA-2 enterprise |
| CONNECTORS |
(1) 50 Ω SMA (center pin: male) |
| SOFTWARE AND MANAGEMENT |
| REMOTE MANAGEMENT |

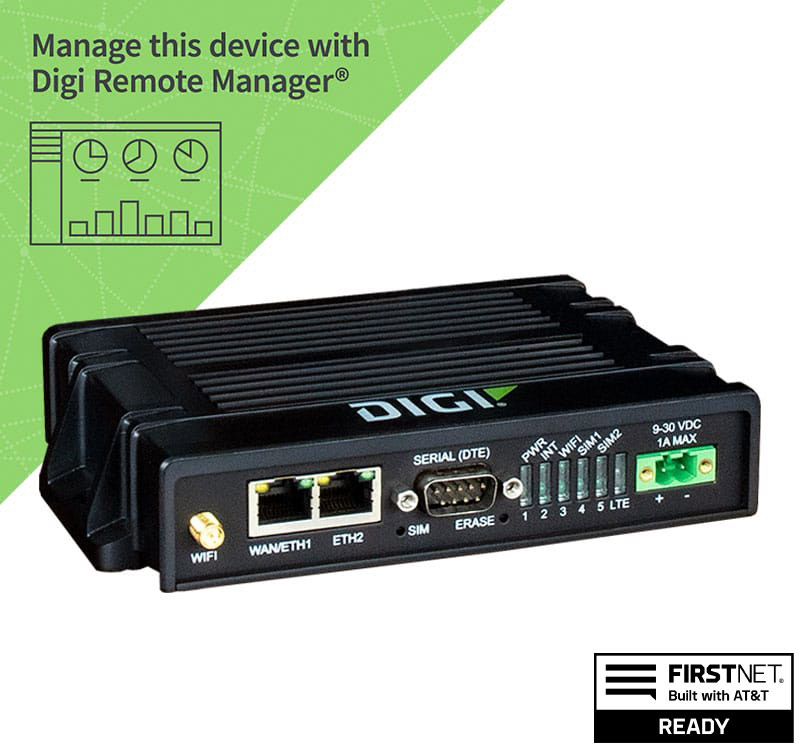

Digi Remote Manager®; SNMP v2/v3 (user installed/managed) |
| LOCAL MANAGEMENT |
Web UI (HTTP/HTTPS); CLI (Telnet, SSH) |
| MANAGEMENT / TROUBLESHOOTING TOOLS |
FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, dynamic DNS, ping, traceroute |
| MEMORY |
256 MB RAM, 256 MB flash |
| ETHERNET |
| PORTS |
(2) RJ-45; 10/100 Mbps (auto-sensing) |
| SERIAL |
| PORTS |
(1) DB9M; RS-232 DTE; signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) |
| PHYSICAL |
| DIMENSIONS (L x W x H) |
107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) |
| WEIGHT |
0.65 kg (1.4 lb) |
| STATUS LEDs |
Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE |
| ENCLOSURE |
Glass-filled polyphenylene sulphide (PPS) / IP30 |
| POWER REQUIREMENTS |
| POWER INPUT |
9 - 30 VDC, 1.0 A maximum; Connector: 2-position rewireable plug with securing screws included |
| POWER CONSUMPTION |
2.5 W typical (idle); 6 W typical (peak Tx/Rx) |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE |
Models with Wi-Fi: -20° C to 70° C (-4° F to 158° F)
Models without Wi-Fi: -40° C to 70° C (-40° F to 158° F) |
| STORAGE TEMPERATURE |
-40° C to 85° C (-40° F to 185° F) |
| RELATIVE HUMIDITY |
5% to 95% (non-condensing) |
| APPROVALS |
| CELLULAR |
Visit https://www.digi.com/resources/certifications for latest cellular certifications |
| SAFETY |
IEC62368-1, CB, EN62311 |
| ENVIRONMENTAL |
ROHS3 |
| EMISSIONS / IMMUNITY |
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32 |
| WARRANTY |
| PRODUCT WARRANTY |
3-year*** |
