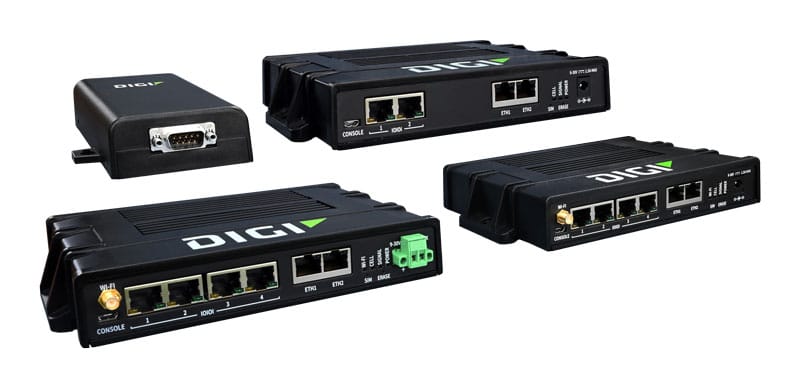

Digi Connect EZ

New

Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years


  • 1, 2 or 4 software-selectable RS-232/422/485 serial ports to connect a wide variety of serial equipment over IP networks
  • 10/100/1000 Ethernet (dual Ethernet on 2- and 4-port), with optional Wi-Fi, industrial temp, C1D2 rating and LTE
  • Ideal for applications requiring COM ports, serial tunneling or TCP/UDP sockets
  • Optimizes performance for the widest range of industry standard and device-specific protocols
  • Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support
  • Easy setup and mass configuration with Digi Navigator™ and Digi Remote Manager®

Most companies are not replacing their equipment — they are updating the way they talk to it. Digi Connect® EZ modernizes operational infrastructure with expanded network connectivity and functionality for today’s applications. It is designed to meet the demands of a wide range of critical serial applications including connecting to automation, robotics control, centralized device management, data acquisition and point-of-sale equipment.

Digi Connect EZ is a click-to-connect solution with 1, 2 or 4 serial ports, software-selectable for 232/422/485 communication, as well as optional LTE, Wi-Fi and industrial specifications (C1D2). It takes only a few minutes to configure with intelligent, use-case based options so that you can quickly install without having to modify your equipment or applications.

Digi simplifies key security requirements for critical infrastructure and distributed systems with enhanced access control, management and configuration capabilities. Digi Connect EZ and built-in Digi TrustFence® give your security and operations teams peace of mind against evolving security threats with encrypted connections, centralized authentication, VPN support and scalable security updates.

Digi Connect EZ supports the widest range of industry standard and device-specific protocols using serial tunneling, TCP/UDP connections or Digi’s patented RealPort® COM port redirector for remote native COM port access. A built-in Python environment enables application development and customization at the device level, including event-based programmability, data conversion and full control of device connections.

Connect EZ Mini
EZ01-MA00-GLB Digi Connect EZ Mini
  • Serial server, 1-port, with accessories
EZ01-MA00-GLB HOW TO BUY
Contact Us
Connect EZ 2
EZ02-CA00-GLB Digi Connect EZ 2
  • Serial server, 2-port, with accessories
EZ02-CA00-GLB HOW TO BUY
Contact Us
EZ02-CAG4-GLB Digi Connect EZ 2
  • Serial server, 2-port, with accessories
  • LTE
EZ02-CAG4-GLB HOW TO BUY
Contact Us
Connect EZ 4
EZ04-WA00-GLB Digi Connect EZ 4
  • Serial server, 4-port, with accessories
  • Wi-Fi
EZ04-WA00-GLB HOW TO BUY
Contact Us
EZ04-WAG4-GLB Digi Connect EZ 4
  • Serial server, 4-port, with accessories
  • LTE
  • Wi-Fi
EZ04-WAG4-GLB HOW TO BUY
Contact Us
Connect EZ 4i
EZ04-IA00-EXT Digi Connect EZ 4i
  • Serial server, 4-port, ​with accessories
  • Industrial-rated
  • Wi-Fi
EZ04-IA00-EXT HOW TO BUY
Contact Us
EZ04-IAG4-EXT Digi Connect EZ 4i
  • Serial server, 4-port, with accessories
  • Industrial-rated
  • LTE
  • Wi-Fi
EZ04-IAG4-EXT HOW TO BUY
Contact Us
Accessories
1002-CMG4-GLB Digi CORE plug-In LTE modem; Global LTE Cat 4, 3G / 2G fallback
  • LTE Cat 4 with 3G/2G fallback (Global)
  • Industrial temperature: -40° C to 70° C (-40° F to 158° F)
  • Cellular certifications: PTCRB, AT&T, Verizon, Telus, US, Canada, Europe
1002-CMG4-GLB HOW TO BUY
Contact Us
76000926 Antenna - Cellular, 3G/4G/LTE (indoor) 76000926 HOW TO BUY
Contact Us
76002118 Antenna - dipole, 4G, magnetic mount, 1 meter cable 76002118 HOW TO BUY
Contact Us
29000938 Antenna - whip 2.4 and 5 GHz dipole 5 dBi 29000938 HOW TO BUY
Contact Us
24000136 Power Supply - 12 VDC 3 A wall plug, locking barrel, with tips for US, UK, EU and AU 24000136 HOW TO BUY
Contact Us
76000823

AC Power Supply - Std Temperature, Universal Plugs (US, EU, UK, AU) to 12 VDC - 2.1 mm locking barrel plug

76000823 HOW TO BUY
Contact Us
76002093 DIN rail mounting bracket kit 76002093 HOW TO BUY
Contact Us
76002095 DIN rail clip kit 76002095 HOW TO BUY
Contact Us
Serial Cables and Adapters
76000697 DB-9F Console Adapter (Quantity: 4) 76000697 HOW TO BUY
Contact Us
76000698 DB-25M Console Adapter (Quantity: 4) 76000698 HOW TO BUY
Contact Us
76000699 DB-25F Console Adapter (Quantity: 4) 76000699 HOW TO BUY
Contact Us
76000700 DB-25M Modem Adapter (Quantity: 4) 76000700 HOW TO BUY
Contact Us
76000701 DB-9M Modem Adapter (Quantity: 4) 76000701 HOW TO BUY
Contact Us
76000195 RJ-45 to DB-25 Male Straight, 4' (Replacement for 76000129) 76000195 HOW TO BUY
Contact Us
76000199 RJ-45 to DB-25 Female Straight, 4' (Replacement for 76000198) 76000199 HOW TO BUY
Contact Us
76000201 RJ-45 to DB-9 Female Straight, 4' (Replacement for 76000200) 76000201 HOW TO BUY
Contact Us
76000238 RJ-45 to DB-25 Male Crossover, 4' 76000238 HOW TO BUY
Contact Us
76000240 RJ-45 to DB-9 Male Straight, 4' (Replacement for 76000239) 76000240 HOW TO BUY
Contact Us
76000264 RJ-45 to DB-9 Male Crossover, 4' 76000264 HOW TO BUY
Contact Us
76000631 6' cable RJ-45 to RJ-45 for Sun Netra/Cisco 76000631 HOW TO BUY
Contact Us
76000645 RJ-45 to DB-9 Female Crossover, 4' 76000645 HOW TO BUY
Contact Us
76000723 Connect EIA 422/485 Devices to Digi MEI products that have 10 pin RJ45 connectors 76000723 HOW TO BUY
Contact Us
Digi Remote Manager
Digi Remote Manager is the technology platform enabling and automating the deployment, monitoring and management of thousands of devices from a single point of command. Compare Digi’s multiple offerings and varying subscription terms to meet your business needs.   GET STARTED
SPECIFICATIONS Digi Connect EZ EZ Mini EZ 2 EZ 4 EZ 4i
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager®; SNMP v3 (user installed/managed)
LOCAL MANAGEMENT Digi Navigator™ discovery and configuration tool, Web UI (HTTP/HTTPS), CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS Digi Navigator discovery and configuration tool, FTP client, SCP, protocol analyzer with PCAP for Wireshark, event logging with syslog and SMTP client, NTP/SNTP, Nagios, Intelliflow, iPerf, Dynamic DNS, ping, traceroute
MEMORY   256 MB RAM, 4 GB Flash
SECURITY
AUTHENTICATION TACACS+, LDAP, Enterprise RADIUS
ETHERNET
PORTS RJ-45, 10/100/1000 Mbps (auto-sensing) 1-port 2-port 2-port 2-port
SERIAL SIGNAL CAPABILITIES
PORTS RS-232 DTE/RS-422/RS-485 capable, software selectable (1) DB9 (2)RJ45-10 (4) RJ45-10 (4) RJ45-10
RS-232 / EIA-232 SERIAL MODES Signal support TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI flow control options: XON/OFF, CTS/RTS, RTS-toggle
RS-422 / EIA-422 SERIAL MODES TX+/-, RX+/-, software termination, pre-delay/post-delay
RS-485 / EIA-485 SERIAL MODES Data+/Data-, software termination, pre-delay/post-delay
CELLULAR
CERTIFICATIONS Visit www.digi.com/resources/certifications for latest certifications - When used with Digi CORE plug-in LTE modem
LTE (G4) WITH DIGI CORE PLUG-IN LTE MODEM 1002-CMG4 LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B38, B40, B41; 3G: B1, B2, B4, B5, B6, B8, B19;
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (1) 50 Ω SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Secured in cellular module
WI-FI
MODULE 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) - -
MODES Client mode and access point mode simultaneously - -
CLIENTS Maximum 10 clients (access point mode: regardless of combination of clients and access points) - -
ACCESS POINTS Maximum 2 access points (access point mode: regardless of combination of clients and access points) - -
SECURITY WPA-3/WPA-2 personal, WPA/WPA-2 enterprise - -
CONNECTORS (1) 50 Ω SMA (center pin: male) - -
PHYSICAL
DIMENSIONS (L x W x H)   13.7 x 9.5 x 3 cm (5.39 x 3.74 x 1.18 in) 19.2 x 13.4 x 3.5 cm (7.56 x 5.28 x 1.38 in)
PACKAGE DIMENSIONS   21.4 x 18.4 x 6.5 cm (8.43 x 7.24 x 2.56 in) 35.5 x 20.4 x 6.7 cm (13.98 x 8.03 x 2.64 in)
PACKAGE WEIGHT   0.6 kg (1.32 lb) 1.3 kg (2.87 lb)
STATUS LEDs Each Ethernet and Serial port has two status LEDs Power, Serial Power, Signal, LTE, Ethernet, Serial Power, Signal, LTE, Wi-Fi, Ethernet, Serial
POWER REQUIREMENTS
POWER INPUT Locking barrel: 9 - 30 VDC, locking 2.1 mm center barrel connector -
Phoenix connector: 9 - 30 VDC, Connector: 2-position rewireable plug with securing screws included - - -
POWER CONSUMPTION   9 V @ 1 A max, typical 1.7 W 9 V @ 1.5 A max, 5 W typical with Digi CORE modem, 4.5 W typical without Digi CORE modem
ENVIRONMENTAL
OPERATING TEMPERATURE Standard operating temperature of Connect EZ device 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) -35° C to 74° C (-31° F to 165° F)
With Digi CORE plug-in LTE modem - 0° C to 40° C (32° F to 104° F) 0° C to 40° C (32° F to 104° F) -35° C to 70° C (-31° F to 158° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
CELLULAR Visit www.digi.com/resources/certifications for latest certifications
SAFETY IEC62368-1, IEC60950-1, CB, EN62311, UL62368-1, UL60950-1
INDUSTRIAL CERTIFICATION Class 1, Division 2 - - -
ENVIRONMENTAL RoHS3
EMISSIONS / IMMUNITY CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32
WARRANTY
PRODUCT WARRANTY 5-year for base Connect EZ device, 3-year for Digi CORE plug-in LTE modem



ENTERPRISE SOFTWARE DESCRIPTION
NETWORK PROTOCOL SUPPORT HTTPS, FTP client, SSL, TLS v1.2, SCP (client and server), SFTP, SMTP client for use by scripts and the command line, SNMP (v2/v3), SSH, remote management via Digi Remote Manager® ; Protocol analyzer, ability to capture PCAP for use with Wireshark; DynDNS,Dynamic DNS client compatible with BIND9/No-IP/DynDNS; Captive portal, Intelliflow; Nagios, DNS server, NTP server, Multicast, mDNS, IPerf
SERIAL AND DATA PROTOCOL SUPPORT RealPort, Socket and Autoconnect Socket Connectivity for TCP and Encrypted TCP, SSH, Telnet, UDP, Modbus, Pyserial support via built-in Python interpreter
SECURITY IP filtering, stateful firewall, custom firewall rules (iptables), address and port translation; TLS 1.2 and above, FIPS 197, open VPN client and server; VPN tunnels; Authentication: RADIUS, TACACS+; certificates; MAC address filtering; VLAN support
VPN IPsec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MDS, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
ROUTING / FAILOVER IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP, IP failover: VRRP; automatic failover; Digi SureLink®
OTHER PROTOCOLS DHCP; dynamic DNS client compatible with No-IP/DynDNS
