Digi XBee-PRO® XSC

NRND

900 MHz Long-Range RF Module

For new designs that do not require interoperability with 9XStream radios, see XBee-PRO 900HP
Over-the-air compatibility with legacy 9XStream products
20 times less current draw than previous XSC module
Superior outdoor LOS range of up to 28 miles*

Overview Part Numbers & Accessories Specifications Resources Support

The Digi XBee-PRO XSC 900 MHz RF module features two times the throughput and 20 times less current draw than the previous XSC module, making it ideal for long-range sensor applications. The RF module features an ADF7023 transceiver from Analog Devices, delivering best-in-class distances up to 28 miles Line-of-Sight (LOS)*, along with low power consumption, drawing less than 2.5 uA in power down.

The latest Digi XBee-PRO XSC (S3B hardware) is firmware compatible with the legacy 9XStream® and the legacy Digi XBee-PRO XSC modules.

Digi’s free X-CTU configuration utility simplifies the configuration of the XSC module, which requires no programming. In addition, it can be easily configured via a simplified AT command set. The RF modules are pre-certified for North America and Australia, further reducing development costs and time to market.

Download datasheet

User manuals & guides

Add to compare

The Digi modules operate from 868 to 900 MHz and 2.4 GHz. This is an invaluable advantage, as it means that we are able to choose the model we need and reach international markets with just one plug.

David Gascón, CTO, Libelium

Read the full story

Next Generation Configuration Platform for Digi XBee

XCTU is free and compatible with Windows, MacOS and Linux.
Simple wireless network configuration and architecture.
Simple development tool for quickly building XBee API frames.
Explore and read firmware release notes.

Learn More

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

Related Resources

Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF

Digi XBee Ecosystem Find everything to explore and create wireless connectivity in the Digi XBee Ecosystem. WATCH VIDEO

Where Will You Use Your XBee? Around the world, XBee RF wireless modules are extending the reach of wireless technology. They can be found anywhere... WATCH VIDEO

XBee-PRO XSC Product Datasheet VIEW PDF

Digi XBee Family Features Comparison Chart VIEW PDF

An Introduction to XCTU WATCH VIDEO

Digi XBee-Enabled Sensors Monitor Harsh Environments Sensor technology research and development is important for monitoring the environment around us, ranging from prevention of... READ STORY

All related resources


XBee-PRO XSC S3B, 900 MHz, 250 mW, RPSMA ant connector, 9600 bps	XBP9B-XCST-001	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 900 MHz, 250 mW, RPSMA ant connector, 19.2 Kbps	XBP9B-XCST-002	HOW TO BUY Contact Us

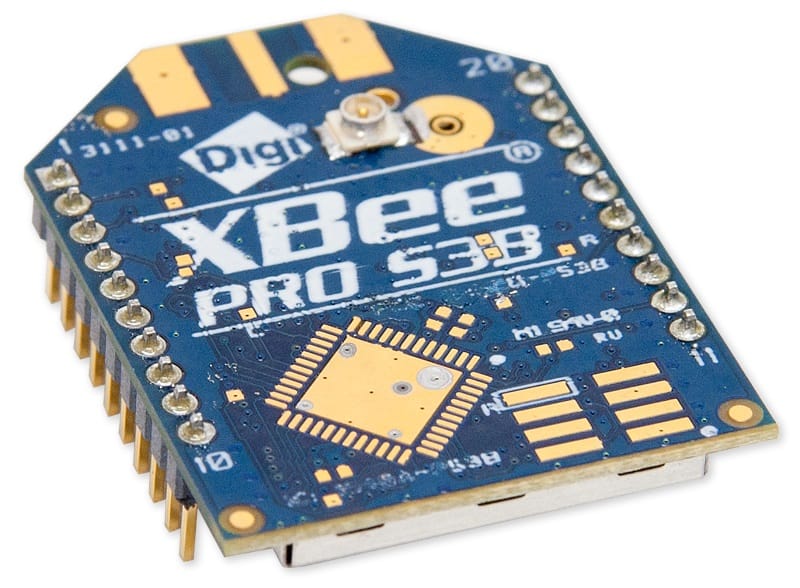

XBee-PRO XSC S3B, 900 MHz, 250 mW, U.FL ant connector, 9600 bps	XBP9B-XCUT-001	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 900 MHz, 250 mW, U.FL ant connector, 19.2 Kbps	XBP9B-XCUT-002	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 900 MHz, 250 mW, wire antenna, 9600 bps	XBP9B-XCWT-001	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 900 MHz, 250 mW, wire antenna, 19.2 Kbps	XBP9B-XCWT-002	HOW TO BUY Contact Us


XBee-PRO XSC S3B, 920 MHz, 250 mW, RPSMA ant connector, 9600 bps (International)	XBP9B-XCST-021	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 920 MHz, 250 mW, RPSMA ant connector, 19.2 Kbps (International)	XBP9B-XCST-022	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 920 MHz, 250 mW, U.FL ant connector, 19.2 Kbps (International)	XBP9B-XCUT-022	HOW TO BUY Contact Us
XBee-PRO XSC S3B, 920 MHz, 250 mW, wire antenna, 19.2 Kbps (International)	XBP9B-XCWT-022	HOW TO BUY Contact Us


Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male, articulating.	A09-HASM-7	HOW TO BUY Contact Us
Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male.	A09-HSM-7	HOW TO BUY Contact Us
Antenna - 900 MHz, yagi, 8.1 dBi, N-female.	A09-Y8NF	HOW TO BUY Contact Us
Antenna - 900 MHz, yagi, 11.1 dBi, N-female.	A09-Y11NF	HOW TO BUY Contact Us
Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male.	A09-HBSM-P5I	HOW TO BUY Contact Us

Development Boards
	Grove Connector Development Board - XBee, through-hole sockets	76000956	HOW TO BUY Contact Us
	Development board - XBee 3, USB-C, through-hole sockets	XBIB-CU-TH	HOW TO BUY Contact Us

Digi XBee Multi Programmer
	Digi XBee Multi Programmer, through-hole (TH)	XBEE-MP-TH	HOW TO BUY Contact Us
	Digi XBee Multi Programmer, through-hole (TH) printed circuit board	XBEE-MP-TH-PCB	HOW TO BUY Contact Us


Customer Training	DG-PSTR-CUST	HOW TO BUY Contact Us
On-site and Troubleshooting	DG-PSOS-CUST	HOW TO BUY Contact Us
Site Survey - RF	DG-PSSS-RF	HOW TO BUY Contact Us
Implementation Planning	DG-PSIC-CUST	HOW TO BUY Contact Us
Installation Services	DG-PSPP-CUST	HOW TO BUY Contact Us

Specifications	Digi XBee-PRO XSC (S3B)
Hardware
Processor	ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz
Frequency Band	902 MHz to 928 MHz
Antenna Options	Wire, U.FL, RPSMA
Performance
RF Data Rate	10 Kbps or 20 Kbps
Indoor/Urban Range*	Up to 2000 ft (610 m)
Outdoor/Line-Of-Sight Range*	Up to 9 mi (14 km) w/ dipole antenna Up to 28 mi (45 km) w/ high-gain antenna
Transmit Power	Up to 24 dBm (250 mW) software selectable
Receiver Sensitivity	-109 dBm at 9600 baud -107 dBm at 19200 baud
Features
Spread Spectrum	FHSS
Operating Temperature	-40° C to +85° C
Power
Supply Voltage	2.4 to 3.6 VDC
Transmit Current	215 mA
Receive Current	26 mA
Sleep Current	2.5 uA
Regulatory Approvals
FCC	MCQ-XBPS3B
IC	1846A-XBPS3B
C-Tick	Australia
ANATEL	Brazil

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
