Digi ConnectCore 6UL

Intelligent and connected embedded system-on-module based on the NXP i.MX6 UL, with turnkey Linux software support in a stamp-sized form factor

Stamp-sized, secure, connected System-on-Module platform
NXP i.MX6UL-2, Cortex-A7 @ 528 MHz
256 MB / 1 GB NAND flash, 256 MB / 1 GB DDR3
Patent-pending low-profile Digi SMTplus™ form factor
Integrated Digi Microcontroller Assist™ for 2.5 µA ultra-low power modes
Pre-certified 802.11a/b/g/n/ac + Bluetooth® 5 option
Integrated dual 10/100 Ethernet connectivity
Digi TrustFence® embedded device security framework
Royalty-free embedded Linux® software platform
Turnkey development available from Digi WDS

Overview Part Numbers & Accessories Specifications Resources Support

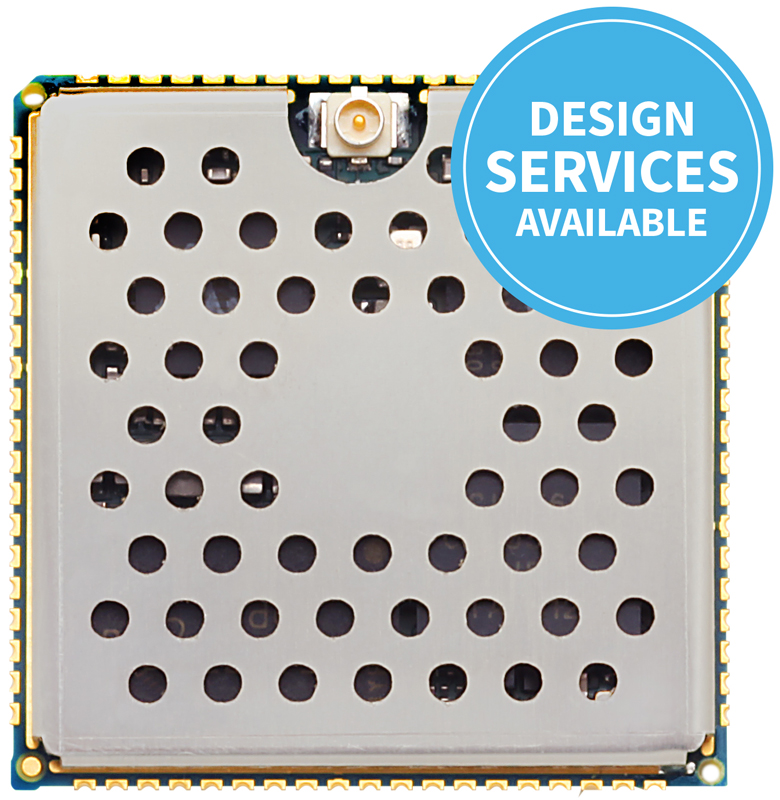

The Digi ConnectCore® 6UL module delivers a secure and extremely cost-effective connected System-on-Module platform that is slightly bigger than a postage stamp. Its patent-pending Digi SMTplus™ surface mount form factor allows you to choose simplified design integration leveraging proven and easy-to-use edge-castellated SMT technology, or a versatile LGA option for ultimate design flexibility with access to virtually all interfaces.

Built on the NXP i.MX6UL UltraLite application processor, the module is the intelligent communication engine for today’s secure connected devices. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 5 connectivity.

Embedded device security is a critical design aspect for the growing number of connected applications (“IoT”) and the ConnectCore 6UL removes the implementation barriers by providing you with Digi TrustFence, a fully integrated secure module platform with complete Linux software support.

Smallest Size and Without Compromise

Smallest form factor. Lowest power. Wired or wireless. Pre-certified. The one i.MX6UL UltraLite SOM platform solution for all your connected devices.

Digi SMTplus™ for Design and Manufacturing Flexibility

Patent-pending Digi SMTplus form factor for optimized build/cost

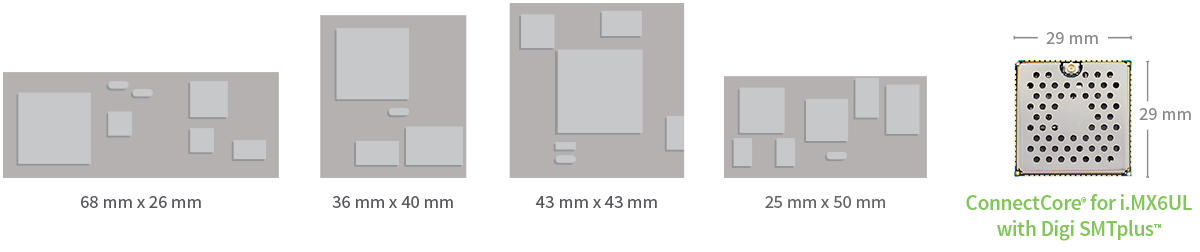

Ultra-compact size of 29 x 29 mm with reliable low-profile mounting
Simplified and cost-optimized design and manufacturing flexibility
- 245-pad LGA (universal), or 76-pad (simple) castellated edge vias
- Reduced carrier board layer count for simpler applications
- No board connector cost, no board connector supply dependency
Simplified edge castellations (~76) only,
or versatile LGA (~245 @ 1.27 mm pitch) for design flexibility

Designed for automated pick-and-place

Highly cost-effective manufacturing in low and high volume applications
Castellated edge vias also allow manual prototyping placement

Common footprint

Highly cost-effective manufacturing in low and high volume applications
Castellated edge vias also allow manual prototyping placement

Build Secure Connected Embedded Devices Powered By Digi TrustFence

Device security is a critical design aspect for every connected device. The ConnectCore 6UL combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.

Managed device security software framework
U-Boot and Linux platform integration
Transparent and future-proof architecture
Zero implementation effort

Learn More

i.MX 6UltraLite

The most power efficient, lowest cost and smallest industrial i.MX6 family processor

Built on the NXP i.MX6UL application processor, the ConnectCore 6UL is the intelligent communication engine for today’s secure connected devices in industrial applications. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 4.2 connectivity.

Key Industries

Components for Medical Devices Manufacturing Automation Smart Grid

Download datasheet

User manuals & guides

Mechanical drawings

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.

Wireless Design Services
