Digi XBee 3 Zigbee 3 RF Module

Easy-to-add connectivity in a compact, low-power, low-profile footprint

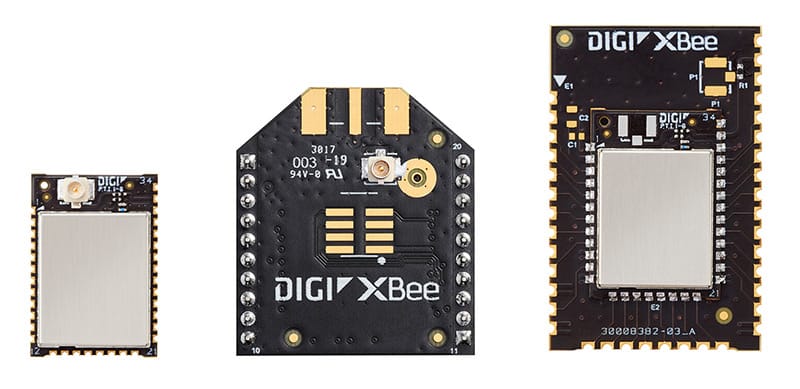

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
How to Buy

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee 3 Zigbee 3.0 offers a fully interoperable ecosystem covering all vertical markets including building automation, smart energy, digital health, intelligent lighting, and others.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and Digi XCTU® software tools simplify adding functionality, configuration and testing.

From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee 3 Series is engineered to accelerate development and deployment.

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

Related Resources

Zigbee vs Bluetooth in IoT Applications Zigbee vs Bluetooth in IoT Applications Local communications in Internet of Things (IoT) applications require an excellent wireless protocol. While there are many options out there for developers, we will focus on two of the most-used protocols — Zigbee and Bluetooth — and what they do best. VIEW PDF Sicom Electronics Sicom Electronics Helps Smart Cities with Managed Streetlights, Saving Money and Resources In Chile, a country that imports fossil fuels and relies heavily on hydroelectric dams, energy conservation matters. Sicom is... READ STORY LASARRUS LASARRUS Medical Wearables Connect Sensors to Remote Monitoring to Improve Physical Therapy Process and Outcomes LASARRUS develops new, innovative devices to improve physical therapy outcomes for victims of stroke or joint injuries. Its... READ STORY Digi IX15 Datasheet Digi IX15 Datasheet Programmable gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet VIEW PDF Zigbee Wireless Mesh Networking Zigbee Wireless Mesh Networking The Zigbee 3.0 protocol is specifically designed for the noisy RF environments common in commercial and industrial applications – making it an ideal choice for low-cost, low-power wireless IoT... LEARN MORE Digi Remote Manager (DRM) 3.0 for IoT Devices Digi Remote Manager (DRM) 3.0 for IoT Devices See how a comprehensive IoT device management application for secure asset monitoring and control will help you get better... WATCH VIDEO Five Tips for Successfully Developing IoT Applications Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF Introducing Digi XBee3 Programmable Modules Introducing Digi XBee3 Programmable Modules The new Digi XBee3 embedded RF modules provide cost effective wireless for secure, reliable connectivity in a simple, compact... WATCH VIDEO The Connected Future: Partnering For What Comes Next The Connected Future: Partnering For What Comes Next IoT enables enterprise companies to access real-time data in remote devices and sensors enabling increased productivity and better customer experiences. VIEW PDF Digi XBee 3 Zigbee 3.0 Datasheet Digi XBee 3 Zigbee 3.0 Datasheet Easy-to-add connectivity in a compact, low-power, low-profile footprint VIEW PDF Digi XBee 3 Zigbee Mesh Kit Datasheet Digi XBee 3 Zigbee Mesh Kit Datasheet Explore hands-on mesh networking and connectivity with Digi XBee 3 RF modules VIEW PDF

All related resources
Kit
XK3-Z8S-WZM Digi XBee 3 Zigbee Mesh Kit, worldwide XK3-Z8S-WZM HOW TO BUY
Contact Us
Modules
XB3-24Z8RM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, RF Pad Ant, MMT XB3-24Z8RM-J HOW TO BUY
Contact Us
XB3-24Z8UM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, U.FL Ant, MMT XB3-24Z8UM-J HOW TO BUY
Contact Us
XB3-24Z8CM-J Digi XBee 3 Zigbee 3.0, 2.4 GHz, Micro, Chip Ant, MMT XB3-24Z8CM-J HOW TO BUY
Contact Us
XB3-24Z8RM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, RF Pad Ant, MMT XB3-24Z8RM HOW TO BUY
Contact Us
XB3-24Z8UM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, U.FL Ant, MMT XB3-24Z8UM HOW TO BUY
Contact Us
XB3-24Z8CM Digi XBee 3 PRO Zigbee 3.0, 2.4 GHz, Micro, Chip Ant, MMT XB3-24Z8CM HOW TO BUY
Contact Us
XB3-24Z8ST-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, RPSMA Ant, TH MT XB3-24Z8ST-J HOW TO BUY
Contact Us
XB3-24Z8UT-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, U.FL Ant, TH MT XB3-24Z8UT-J HOW TO BUY
Contact Us
XB3-24Z8PT-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, PCB Ant, TH MT XB3-24Z8PT-J HOW TO BUY
Contact Us
XB3-24Z8ST Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, RPSMA Ant, TH MT XB3-24Z8ST HOW TO BUY
Contact Us
XB3-24Z8UT Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, U.FL Ant, TH MT XB3-24Z8UT HOW TO BUY
Contact Us
XB3-24Z8PT Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, PCB Ant, TH MT XB3-24Z8PT HOW TO BUY
Contact Us
XB3-24Z8RS-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, RF Pad Ant, SMT XB3-24Z8RS-J HOW TO BUY
Contact Us
XB3-24Z8US-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, U.FL Ant, SMT XB3-24Z8US-J HOW TO BUY
Contact Us
XB3-24Z8PS-J Digi XBee 3, 2.4 Ghz Zigbee 3.0, PCB Ant, SMT XB3-24Z8PS-J HOW TO BUY
Contact Us
XB3-24Z8RS Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, RF Pad Ant, SMT XB3-24Z8RS HOW TO BUY
Contact Us
XB3-24Z8US Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, U.FL Ant, SMT XB3-24Z8US HOW TO BUY
Contact Us
XB3-24Z8PS Digi XBee 3 PRO, 2.4 Ghz Zigbee 3.0, PCB Ant, SMT XB3-24Z8PS HOW TO BUY
Contact Us
A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I HOW TO BUY
Contact Us
A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 HOW TO BUY
Contact Us
A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 HOW TO BUY
Contact Us
DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT HOW TO BUY
Contact Us
Development Boards
76000956 Grove Connector Development Board - XBee, through-hole sockets 76000956 HOW TO BUY
Contact Us
XBIB-C-MMT Development board - XBee 3, USB-C, micro XBIB-C-MMT HOW TO BUY
Contact Us
XBIB-C-SMT Development board - XBee 3, USB-C, surface-mount socket XBIB-C-SMT HOW TO BUY
Contact Us
XBIB-CU-TH Development board - XBee 3, USB-C, through-hole sockets XBIB-CU-TH HOW TO BUY
Contact Us
Digi XBee Multi Programmer
XBEE-MP-MCRO Digi XBee Multi Programmer, micro form factor (MMT) XBEE-MP-MCRO HOW TO BUY
Contact Us
XBEE-MP-SMT Digi XBee Multi Programmer, surface mount (SMT) XBEE-MP-SMT HOW TO BUY
Contact Us
XBEE-MP-TH Digi XBee Multi Programmer, through-hole (TH) XBEE-MP-TH HOW TO BUY
Contact Us
XBEE-MP-MCRO-PCB Digi XBee Multi Programmer, micro form factor (MMT) printed circuit board XBEE-MP-MCRO-PCB HOW TO BUY
Contact Us
XBEE-MP-SMT-PCB Digi XBee Multi Programmer, surface mount (SMT) printed circuit board XBEE-MP-SMT-PCB HOW TO BUY
Contact Us
XBEE-MP-TH-PCB Digi XBee Multi Programmer, through-hole (TH) printed circuit board XBEE-MP-TH-PCB HOW TO BUY
Contact Us
Digi XBee 3 USB Adapters
XU3-A11 Digi XBee 3 USB Adapter - US, Canada and EMEA XU3-A11 HOW TO BUY
Contact Us
Specifications Digi XBee® 3 Zigbee 3.0 Digi XBee® 3 PRO Zigbee 3.0
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
DATA RATE RF 250 Kbps, serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 200 ft (60 m) Up to 300 ft (90 m)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 4000 ft (1200 m) Up to 2 miles (3200 m)
TRANSMIT POWER +8 dBm +19 dBm
RECEIVER SENSITIVITY (1% PER) -103 dBm normal mode
FEATURES
SERIAL DATA INTERFACE UART, SPI, I2C
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Micro, through-hole, surface mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-hole: PCB Antenna, U.FL Connector, RPSMA Connector
SMT: RF Pad, PCB Antenna, or U.FL Connector
Micro: U.FL Antenna, RF Pad, Chip Antenna
OPERATING TEMPERATURE -40º C to 85º C (-40º F to 185º F)
DIMENSIONS (L X W X H) Through-Hole: 2.438 x 2.761 cm (0.960 x 1.087 in)
SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
Micro: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
PROGRAMMABILITY
MEMORY 1 MB / 128 KB RAM (32 KB are available for MicroPython)
NETWORKING AND SECURITY
PROTOCOL Zigbee 3.0
ENCRYPTION 128/256 bit AES
RELIABLE PACKET DELIVERY Retries/acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6 V
TRANSMIT CURRENT 40 mA @ 8 dBm 135 mA @ 19 dBm
RECEIVE CURRENT 17 mA
POWER-DOWN CURRENT 2 micro Amp @ 25º C (77º F)
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (Australia) Yes Yes
Anatel (Brazil) Yes Yes
Teleck MIC (Japan) Yes No
KCC (South Korea) Yes No

Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
