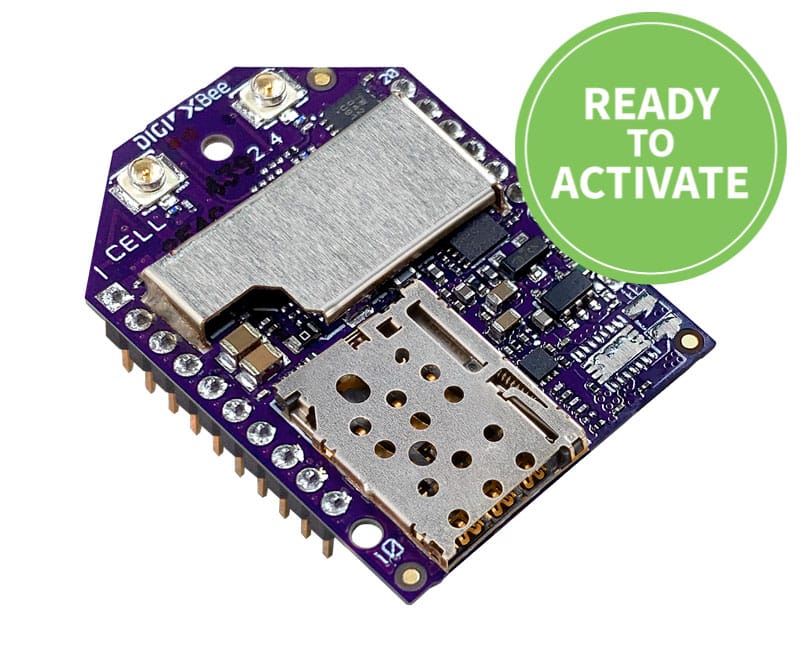

Digi XBee 3 Cellular LTE-M/NB-IoT modem

Compact, flexible cellular connectivity for IoT devices and gateways


  • One hardware platform for use on LTE-M/NB-IoT networks with multi-band support to integrate with many carriers
  • FCC certified and carrier end-device certified
  • Integrated MicroPython programmability for edge compute
  • MQTT support for Microsoft Azure and Amazon AWS
  • Low power consumption optimized for long battery life
  • Enhanced with Digi TrustFence® security framework
  • Manage and configure with Digi XCTU® and Digi Remote Manager®
  • Digi XBee® Transparent and API modes simplify design
  • CE/RED certified and network tested
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Modem includes SIM and ready to activate. Visit shop.digi.com to activate service.
How to BuyDevelopment Kit Setup

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

Digi XBee 3 modules are the latest addition to the expanding Digi XBee Ecosystem of wireless modules, gateways, software and development tools – all engineered to accelerate development and deployment. Ideal for low-data (typically <5 MB per month and where latency is not critical), low-power, low-cost applications, Digi XBee 3 Cellular LTE-M/NB-IoT modules feature a power saving mode which extends sleep time and battery life.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. Standard Digi XBee API frames and AT commands, MicroPython and Digi XCTU® software tools simplify adding functionality, set-up, configuration and testing.

The Smallest End-Device Certified Modem for Cellular Networks

End-Device Certified

Digi XBee cellular modems are pre-certifed to work on a cellular network, saving OEMs months of time and thousands of dollars

The Smallest Form Factor

Just 24mm x 33mm with the authentic 20-pin XBee footprint we all know and trust

The Best Development Tools

Digi delivers the most robust library of tools and reference designs

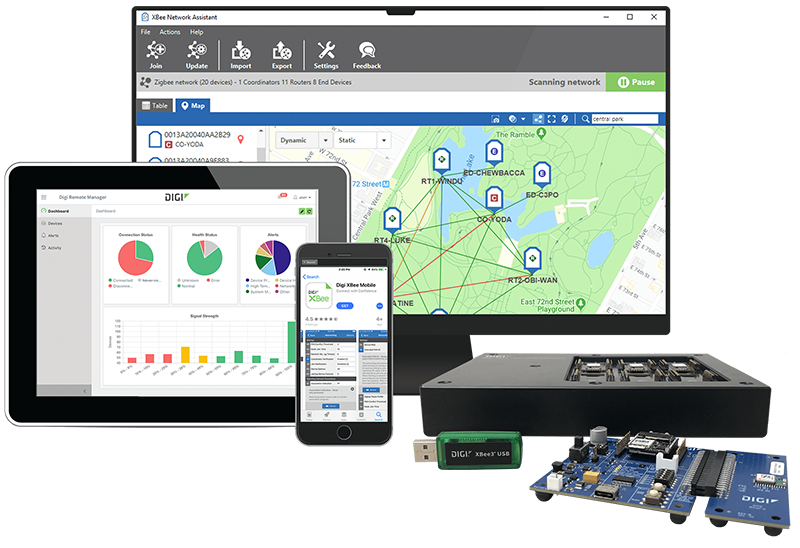

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

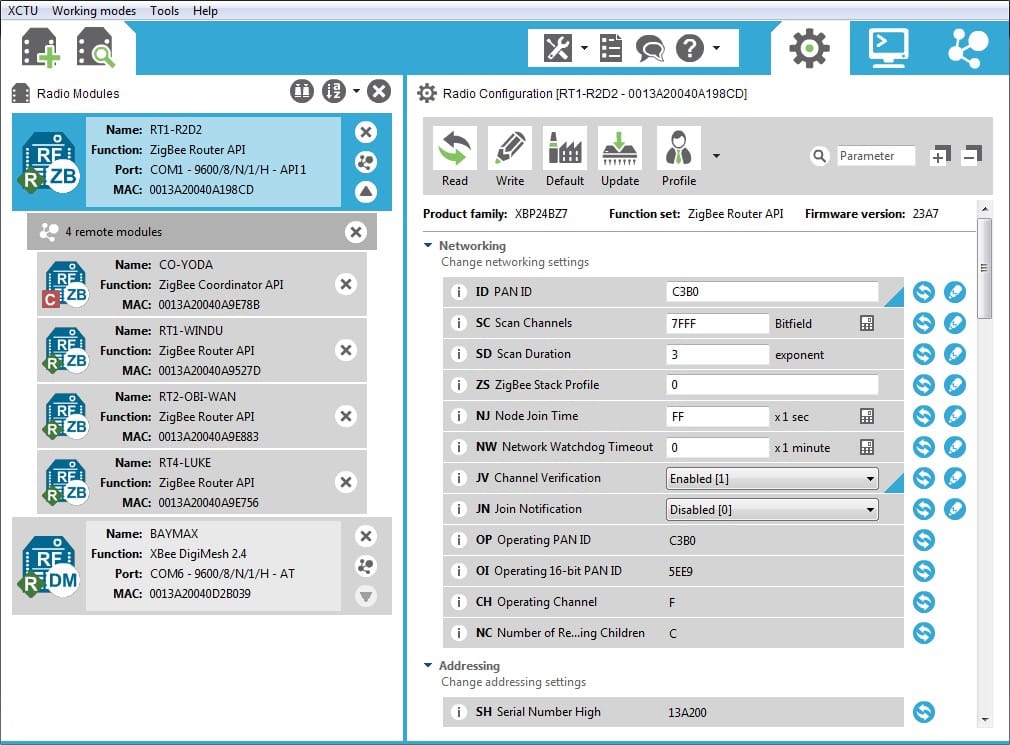

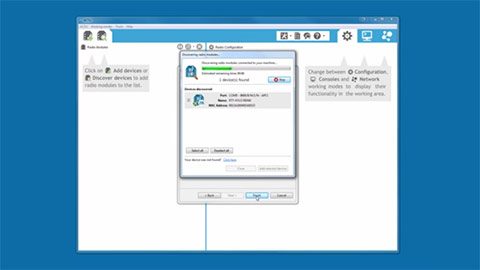

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More

Compare Digi XBee Cellular Modules

Compare Digi XBee Cellular Modules
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More


Related Resources

Jain Irrigation Inc. Jain Irrigation Provides Connected Solutions for Precision Agriculture and Smarter Landscaping Jain Irrigation’s precision agriculture technology products leverage a network of sensors, big data streaming analytics... READ STORY Infinitum Electric Infinitum Delivers Innovative HVAC Monitoring Solution Featuring Smaller Footprint, Predictive Maintenance With an ambitious goal to re-invent the HVAC motor and incorporate IoT for operational insights, Infinitum integrated Digi XBee... READ STORY Wireless Digital Signage Solutions to Engage and Inform Visitors Wireless Digital Signage Solutions to Engage and Inform Visitors Secure, reliable LTE and long-range RF connectivity for flexible, high-impact indoor and outdoor displays I WANT THAT IoT Architecture: Topology and Edge Compute Considerations IoT Architecture: Topology and Edge Compute Considerations Internet of Things (IoT) projects can be complex, as there are many decisions to make. For any IoT project, you need to acquire... READ BLOG What Is Edge Computing? What Is Edge Computing? Edge computing is an Internet of Things (IoT) methodology that solves the challenges of latency and inefficiency in the process... READ BLOG PuppTech PuppTech Creates Monitoring and Notification System to Protect Pets in Vehicles PuppTech is a startup devoted to helping dog owners keep their pets safe in vehicles. The company built PuppComm – a portable... READ STORY Five Things You Should Know About Deploying 50,000 Devices Five Things You Should Know About Deploying 50,000 Devices Large networks of IoT devices are becoming commonplace. Whether you are deploying dozens or tens of thousands of devices, there... RECORDED WEBINAR Bin Sentry BinSentry Agriculture Monitoring Systems Rely on Digi® XBee Cellular for Low-Power, Low-Cost Communication Agriculture IoT startup develops a connected solution to enable farmers and feed mills to monitor feed inventories, replenish... READ STORY Digi Remote Manager (DRM) 3.0 for IoT Devices Digi Remote Manager (DRM) 3.0 for IoT Devices See how a comprehensive IoT device management application for secure asset monitoring and control will help you get better... WATCH VIDEO Keep Your IoT Enterprise Always Up, Always On Keep Your IoT Enterprise Always Up, Always On When discussing an alternate network as a backup to your primary network, also known as failover, it’s important to understand... RECORDED WEBINAR Current and Future State of Cellular and LPWAN Current and Future State of Cellular and LPWAN Learn about the future of LTE-M, NB-IoT and 5G, and the applications that will make use of these emerging networks, from IoT... RECORDED WEBINAR Herding Cats: Leveraging LTE and Preparing for 5G Herding Cats: Leveraging LTE and Preparing for 5G The Internet of Things (IoT) not only means more things will be connected in the future, but that more things will be better... RECORDED WEBINAR Digi XBee 3 Cellular LTE-M/NB-IoT Datasheet Digi XBee 3 Cellular LTE-M/NB-IoT Datasheet Compact, flexible cellular connectivity for IoT devices and gateways VIEW PDF Five Tips for Successfully Developing IoT Applications Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF The Advantages of Digi XBee 3 Cellular The Advantages of Digi XBee 3 Cellular Native MicroPython Programming, Digi TrustFence® Security, Software Flexibility, and USB Option Open Up New Markets and Applications to OEMs VIEW PDF Introducing Digi XBee3 Programmable Modules Introducing Digi XBee3 Programmable Modules The new Digi XBee3 embedded RF modules provide cost effective wireless for secure, reliable connectivity in a simple, compact... WATCH VIDEO The Connected Future: Partnering For What Comes Next The Connected Future: Partnering For What Comes Next IoT enables enterprise companies to access real-time data in remote devices and sensors enabling increased productivity and better customer experiences. VIEW PDF Digi XBee 3 Cellular LTE-M development kit datasheet Digi XBee 3 Cellular LTE-M development kit datasheet Digi XBee 3 Cellular LTE-M development kit provides OEMs with a simple, quick way to integrate cellular connectivity into their devices VIEW PDF Digi XBee Ecosystem Digi XBee Ecosystem Find everything to explore and create wireless connectivity in the Digi XBee Ecosystem. WATCH VIDEO IoT Device Security in Five Simple Steps IoT Device Security in Five Simple Steps Digi Chief Technology Officer (CTO) Joel Young, shares which questions to ask when planning an IoT Strategy and covers the five... WATCH VIDEO What are the Differences Between LTE-M and NB-IoT Cellular Protocols? What are the Differences Between LTE-M and NB-IoT Cellular Protocols? Chief Innovator Rob Faludi, explains two new protocols for cellular communication and how these low bandwidth protocols are... WATCH VIDEO Introducing the Digi XBee® Cellular Introducing the Digi XBee® Cellular Digi Product Manager, Matt Dunsmore introduces the Digi XBee® Cellular 4G LTE Cat 1 Embedded Modem to the Digi XBee Ecosystem. WATCH VIDEO Mesh Networking Vs. Cellular Technology for IoT Applications Mesh Networking Vs. Cellular Technology for IoT Applications Digi Chief Innovation Officer, Rob Faludi, dives deep into the describing and comparing mesh networks and cellular networks. WATCH VIDEO 5 Reasons You Should Consider Embedded Connectivity 5 Reasons You Should Consider Embedded Connectivity VIEW PDF An Introduction to XCTU An Introduction to XCTU WATCH VIDEO

All related resources
Specifications Digi XBee® 3 Cellular Smart Modem, LTE-M/NB-IoT
HARDWARE
CELLULAR CHIPSET u-blox SARA-R410M-02B
FORM FACTOR Digi XBee® 20-pin through-hole
ANTENNA OPTIONS 1 U.FL (Cellular), 1 U.FL (Bluetooth®)
DIMENSIONS 24.38 mm x 32.94 mm (0.96 in x 1.3 in)
OPERATING TEMPERATURE -40º C to 85º C (-40º F to 185º F)
SIM SIZE 4FF Nano
INTERFACE AND I/O
DATA INTERFACE UART, SPI, USB
OPERATING MODES (LTE-M) Transparent and API over serial, PPP over USB
OPERATING MODES (NB-IoT) Transparent, API, UDP
SECURITY Digi TrustFence® security with Secure Boot and Protected JTAG
CONFIGURATION TOOLS Digi XCTU® (Local), Digi Remote Manager® (OTA)
EMBEDDED PROGRAMMABILITY MicroPython with 512 KB Flash / 64 KB RAM
I/O 4 ADC lines (10-bit), 13 Digital I/O, USB, I2C
BLUETOOTH Bluetooth Low Energy Ready
CELLULAR CHARACTERISTICS
TRANSMIT POWER Up to 23 dBm
RECEIVE SENSITIVITY (LTE-M) -105 dBm
RECEIVE SENSITIVITY (NB-IoT) -113 dBm
CARRIER APPROVALS AT&T End Device Certified (LTE-M)
Verizon End Device Certified (LTE-M)
Bell End Device Certified (LTE-M)
Telus End Device Certified (LTE-M)
Compatible with other carriers offering LTE-M and NB-IoT services (see supported bands below)
SUPPORTED BANDS Bands 1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 28 and 39
DOWNLINK/UPLINK SPEEDS (LTE-M) Up to 375 kb/s
DOWNLINK/UPLINK SPEEDS (NB-IoT) Up to 27.2 kb/s Downlink, 62.5 kb/s Uplink
DUPLEX MODE Half-Duplex
POWER REQUIREMENTS
SUPPLY VOLTAGE 3.3 - 4.3 VDC
PEAK TRANSMIT CURRENT 550 mA w/ Bluetooth disabled; 610 mA w/ Bluetooth enabled
AVG TRANSMIT CURRENT (LTE-M) 235 mA
AVG TRANSMIT CURRENT (NB-IoT) 190 mA
POWER SAVE MODE 20 uA
DEEP SLEEP 10 uA
REGULATORY APPROVALS
FCC (USA) MCQ-XB3M1
IC (CANADA) 1846A-XB3M1
CE / RED (EUROPE) Complete
RCM (AUSTRALIA/NEW ZEALAND) Complete
WARRANTY
PRODUCT WARRANTY 1-year
