Digi XBee 3 Cellular LTE Cat 1 modem

Digi XBee 3 smart modems offer the easiest way to integrate cellular connectivity into an OEM device or IoT gateway


  • Integrated MicroPython programmability enables custom scripting directly on the modem
  • Transparent and API modes simplify software design
  • MQTT support for Microsoft Azure and Amazon AWS
  • FCC certified and carrier end-device certified for Verizon, Telus and Bell
  • Smallest end-device certified cellular modem
  • Direct USB provides easy PPP integration option
  • OTA firmware updates
  • Enhanced with Digi TrustFence® security framework
  • Manage and configure with Digi XCTU® and Digi Remote Manager®
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee® Mobile app
  • Modem includes SIM*, ready to activate at shop.digi.com.
    *SIM included in select SKUs.
How to Buy

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

The Golden Bridge Award

Ideal for moderate bandwidth (typically < 25 MB per month) and low-cost IoT applications, Digi XBee 3 Cellular LTE Cat 1 modules are cost-competitive with modules based on older standards.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a central platform. Built-in Digi TrustFence® security, identity and data privacy features use multiple layers of control to protect against new and evolving cyber threats. Standard XBee API frames and AT commands, MicroPython and Digi XCTU® simplify setup, configuration, testing and adding or changing functionality.

Digi XBee 3 modules are the latest addition to the Digi XBee Ecosystem of wireless modules, adapters and software – all engineered to accelerate development and deployment.

The Smallest End-Device Certified Modem for Cellular Networks

End-Device Certified

Digi XBee cellular modems are pre-certifed to work on a cellular network, saving OEMs months of time and thousands of dollars

The Smallest Form Factor

Just 24mm x 33mm with the authentic 20-pin XBee footprint we all know and trust

The Best Development Tools

Digi delivers the most robust library of tools and reference designs

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

Compare Digi XBee Cellular Modules

Compare Digi XBee Cellular Modules
XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi RM


Digi Remote Manager

Drop-in deployment with simple,
secure remote control

Best-in-class monitoring and management ensures you can scale your deployment to a fleet of any size. Digi Remote Manager® gives you a single, secure platform to access data and manage devices from anywhere. Simple, secure control keeps your deployments on track — edit configurations, update firmware, monitor, schedule and automate tasks — all from your desktop or tablet.

90 Day Trial Learn More


Related Resources

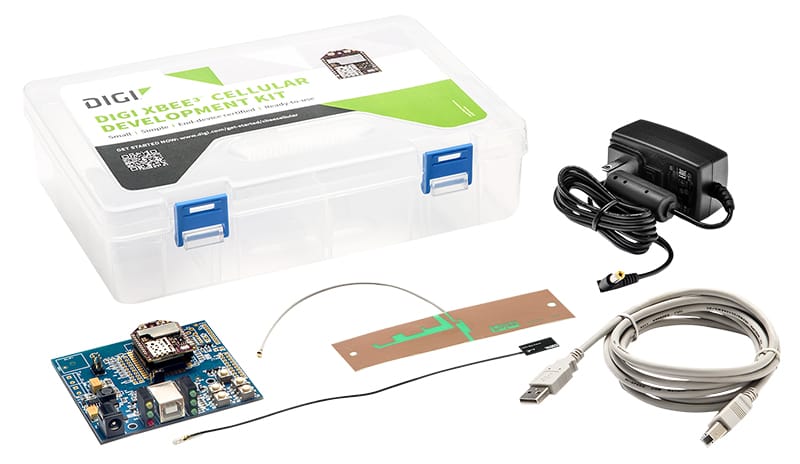

Digi XBee Cellular LTE Cat 1 Development Kit Unboxing Digi XBee Cellular LTE Cat 1 Development Kit Unboxing Digi Chief Innovation Officer, Rob Faludi, unboxes the Digi XBee Cellular LTE Cat 1 Development Kit, which contains everything... WATCH VIDEO EOS International EOS International Deploys Scalable Water-Monitoring Solution Across Nicaragua and Honduras EOS has deployed a remote water quality monitoring pilot in a rural Nicaraguan community, with plans to scale up to hundreds of... READ STORY Taiga Motors Next Gen Powersports: Taiga Motors Creates the First Electric Snowmobile and Personal Watercraft Using Digi Solutions Taiga Motors is an innovative electric power sports company, based in Canada, whose mission is to produce vehicles that provide... READ STORY Digi Remote Manager (DRM) 3.0 for IoT Devices Digi Remote Manager (DRM) 3.0 for IoT Devices See how a comprehensive IoT device management application for secure asset monitoring and control will help you get better... WATCH VIDEO Herding Cats: Leveraging LTE and Preparing for 5G Herding Cats: Leveraging LTE and Preparing for 5G The Internet of Things (IoT) not only means more things will be connected in the future, but that more things will be better... RECORDED WEBINAR Five Tips for Successfully Developing IoT Applications Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF The Advantages of Digi XBee 3 Cellular The Advantages of Digi XBee 3 Cellular Native MicroPython Programming, Digi TrustFence® Security, Software Flexibility, and USB Option Open Up New Markets and Applications to OEMs VIEW PDF Introducing Digi XBee3 Programmable Modules Introducing Digi XBee3 Programmable Modules The new Digi XBee3 embedded RF modules provide cost effective wireless for secure, reliable connectivity in a simple, compact... WATCH VIDEO The Connected Future: Partnering For What Comes Next The Connected Future: Partnering For What Comes Next IoT enables enterprise companies to access real-time data in remote devices and sensors enabling increased productivity and better customer experiences. VIEW PDF Digi XBee 3 Cellular LTE Cat 1 Datasheet Digi XBee 3 Cellular LTE Cat 1 Datasheet Digi XBee 3 smart modems offer the easiest way to integrate cellular connectivity into an OEM device or IoT gateway VIEW PDF Digi XBee 3 Cellular LTE Cat 1 development kit datasheet Digi XBee 3 Cellular LTE Cat 1 development kit datasheet The Digi XBee 3 Cellular LTE Cat 1 development kit provides OEMs with a simple, quick way to integrate cellular connectivity into their devices VIEW PDF Digi XBee Ecosystem Digi XBee Ecosystem Find everything to explore and create wireless connectivity in the Digi XBee Ecosystem. WATCH VIDEO IoT Device Security in Five Simple Steps IoT Device Security in Five Simple Steps Digi Chief Technology Officer (CTO) Joel Young, shares which questions to ask when planning an IoT Strategy and covers the five... WATCH VIDEO What are the Differences Between LTE-M and NB-IoT Cellular Protocols? What are the Differences Between LTE-M and NB-IoT Cellular Protocols? Chief Innovator Rob Faludi, explains two new protocols for cellular communication and how these low bandwidth protocols are... WATCH VIDEO Introducing the Digi XBee® Cellular Introducing the Digi XBee® Cellular Digi Product Manager, Matt Dunsmore introduces the Digi XBee® Cellular 4G LTE Cat 1 Embedded Modem to the Digi XBee Ecosystem. WATCH VIDEO Mesh Networking Vs. Cellular Technology for IoT Applications Mesh Networking Vs. Cellular Technology for IoT Applications Digi Chief Innovation Officer, Rob Faludi, dives deep into the describing and comparing mesh networks and cellular networks. WATCH VIDEO 5 Reasons You Should Consider Embedded Connectivity 5 Reasons You Should Consider Embedded Connectivity VIEW PDF An Introduction to XCTU An Introduction to XCTU WATCH VIDEO

All related resources
Specifications Digi XBee® 3 Cellular LTE Cat 1 Smart Modem
HARDWARE
CELLULAR CHIPSET Telit LE866A1-NA, LE866-SV1 (Verizon)
FORM FACTOR Digi XBee® 20-pin through-hole
ANTENNA OPTIONS 1 U.FL: Cellular Primary, 1 U.FL: Cellular Diversity
Embedded Bluetooth® Antenna
DIMENSIONS 24.38 mm x 32.94 mm (0.96 in x 1.3 in)
OPERATING TEMPERATURE -40º C to 80º C (-40º F to 176º F)
SIM SIZE 4FF Nano
INTERFACE AND I/O
DATA INTERFACE UART, SPI, USB
OPERATING MODES Transparent and API over serial, PPP over USB
SECURITY Digi TrustFence® security with Secure Boot and Protected JTAG
CONFIGURATION TOOLS Digi XCTU® (Local), Digi Remote Manager® (OTA)
EMBEDDED PROGRAMMABILITY MicroPython with 512 K Flash / 64 K RAM
I/O 4 ADC lines (10-bit), 13 Digital I/O, I2C
BLUETOOTH BLE
CELLULAR CHARACTERISTICS
TRANSMIT POWER Up to 23 dBm
RECEIVE SENSITIVITY -102 dBm
SUPPORTED BANDS Bands 2, 4, 12
Bands 4, 13 (Verizon module)
DOWNLINK/UPLINK SPEEDS 10 mbps Downlink, 5 mbps Uplink (USB)
921 Kbit/s Downlink and Uplink (UART)
DUPLEX MODE Full-duplex
POWER REQUIREMENTS (AT 3.3 VDC INPUT POWER)
SUPPLY VOLTAGE 3.0 to 5.5 V
PEAK TRANSMIT CURRENT 1000 mA Bluetooth disabled
1060 mA Bluetooth enabled
AVG TRANSMIT CURRENT 850 mA
AVG RECEIVE CURRENT 320 mA
REGULATORY AND CARRIER APPROVALS
FCC (USA) MCQ-XB3C1 and RI7XE866A1NA,
MCQ-XB3C1 and RI7LE866SV1A (for Verizon module)
IC (CANADA) 1846A-XB3C1 and 5131A-XE866A1-NA,
1846A-XB3C1 and 5131A-LE866-SV1A (for Verizon module)
VERIZON END-DEVICE CERTIFIED Complete - XB3-C-V1-UT-001 only
TELUS END-DEVICE CERTIFIED Complete - XB3-C-A1-UT-001 only (SKU not recommended for new designs)
BELL END-DEVICE CERTIFIED Complete - XB3-C-A1-UT-001 only (SKU not recommended for new designs)
PTCRB Complete for all SKUs
WARRANTY
PRODUCT WARRANTY 1-year
