| WIRELESS INTERFACES |
| CERTIFICATIONS |
Visit https://www.digi.com/resources/certifications for latest certifications |
| LTE - NORTH AMERICA/EMEA (M8) |
LTE Advanced Cat 6: 700(B12,B13,B29)/800(B20,B26)/850(B5)/900(B8)/AWS(B4)/1800(B3)/1900(B2,B25)/
2100(B1)/2300(B30)/2500(B41)/2600(B7)
3G HSPA+: 850/900/AWS/1800/1900/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up
Approvals: PTCRB, AT&T, Verizon, Vodafone (pending) |
| LTE - EMEA/APAC (M7) |
LTE Cat 4: 800(B20)/900(B8)/1800(B3)/2100(B1)/2600(B7)
HSPA: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 150 Mbps down, 50 Mbps up |
| LTE - ANZ/LATAM (L9) |
LTE-Advanced Cat 6: 700(B28)/850(B5,B18,B19)/900(B8)/1500(B21)/1800(B3)/1900(B39)/2100(B1)/
2600(B7,B38)/2300(B40)/2500(B41)
3G HSPA+: 800/850/900/1700/2100 MHz
Transfer rate (max): 300 Mbps down, 50 Mbps up |
| LTE - EMEA/APAC (M2) |
LTE Cat 3: 450(B31)/800(B20)/1800(B3)/2600 (B7)
HSPA+: 900/2100 MHz
EDGE: 900/1800 MHz
Transfer rate (max): 100 Mbps down, 50 Mbps up |
| CONNECTOR |
(2) 50 Ω SMA (center pin: female) |
| SIM SLOTS |
(2) Mini-SIM (2FF) |
| SIM SECURITY |
SIM slot cover plate |
| STANDARD |
802.11 ac/a/b/g/n 2.4/5 GHz |
| MODES |
Access point, client and support for multiple SSID |
| TRANSMIT POWER |
20 dBm + 1.0/-1.5 dBm |
| RECEIVE SENSITIVITY |
54 Mbps / < -72 dBm and 11 Mbps / -90 dBm |
| SECURITY |
Open or shared key authentication; WEP (64- and 128-bit) encryption; WPA/WPA2 with RADIUS (WPA-enterprise and pre-shared keys) |
| CONNECTORS |
(2) 50 Ω RP-SMA (center pin: male) |
| CHANNELS |
50 |
| SENSITIVITY |
-163 dB |
| PROTOCOL |
NMEA 0183 V2.3 sentence output; +3.3 VDC active antenna drive; NMEA stream to local serial port or over TCP/IP |
| NAVIGATION |
Galileo ready |
| AUGMENTATION |
SBAS |
| COLD START |
< 27 seconds TTFF (90%) |
| HORIZONTAL ACCURACY |
< 2.5 meters (90%) |
| VELOCITY ACCURACY |
0.1 m/s |
| CONNECTOR |
1 x 50 Ω SMA (center pin: female) |
| ADDITIONAL FEATURES |
Send GPS via UDP/IP, TCP/IP (up to two destinations) or serial; customize and/or send data using Python; GPS status query; time source capable |
| WIRED INTERFACES |
| PORTS |
(1) DB-9; DCE |
| STANDARD |
RS-232 |
| SIGNAL SUPPORT |
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI |
| FLOW CONTROL |
Software (XON/XOFF), hardware supported |
| ETHERNET |
| PORTS |
(4) RJ-45; 10/100 Mbps (auto-sensing) |
| USB |
| PORTS |
(1) USB 2.0 Type A |
| OTHER |

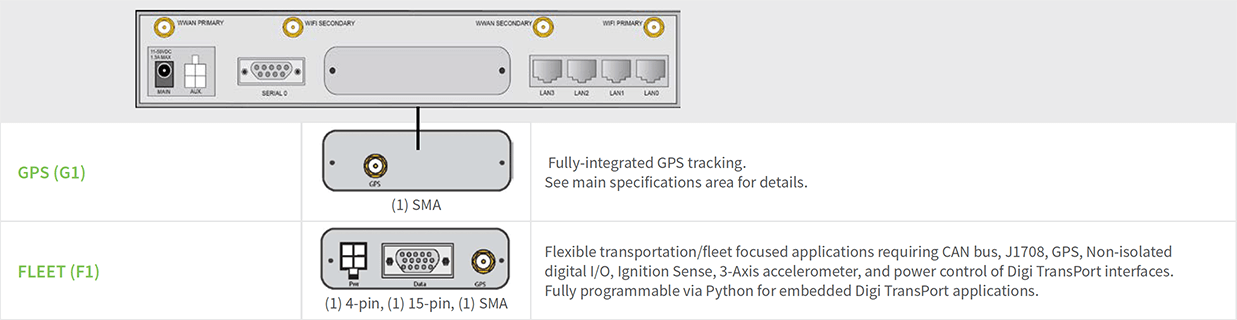

| EXPANSION CARDS |
Option of fleet expansion card |
| SOFTWARE |
| REMOTE MANAGEMENT |
Digi Remote Manager* (cloud based); SNMP v1/v2c/v3 (user installed/managed) |
| LOCAL MANAGEMENT |
Web Interface (HTTP/HTTPS); CLI (Telnet, SSH, SMS, Serial port) |
MANAGEMENT/
TROUBLESHOOTING TOOLS |
FTP, SFTP, SCP, protocol analyzer with PCAP for Wireshark, event logging with Syslog and SMTP, NTP/SNTP |
| MEMORY |
128 MB NAND Flash / 64 MB DDR2 SDRAM |
| POWER |
| INPUT |
9 – 36 VDC |
| CONSUMPTION |
15 W max, 8.5 W typical |
| CONNECTOR |
Locking barrel and 4-pin terminal block (2 pins are used for power; the other 2 pins are used for I/O). |
| PHYSICAL |
| DIMENSIONS (L X W X H) |
140 mm x 254 mm x 48 mm (5.5 in x 10 in x 1.9 in) |
| WEIGHT |
1.1 kg (2.4 lbs) |

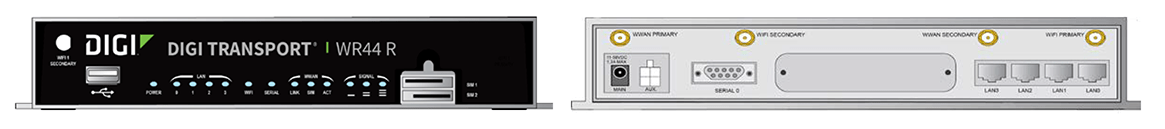

| STATUS LEDS |
Power, LAN, Wi-Fi, serial, WWAN (link, act, SIM), signal strength |
| MATERIAL/RATING |
Aluminum alloy / IP30 |
| MOUNTING |
(4) mounting slots on the unit’s flange |
| ENVIRONMENTAL |
| OPERATING TEMPERATURE |
Non-Wi-Fi variants: -40° C to 70° C (-40° F to 158° F); single-Wi-Fi variants: -20° C to 70° C (-4° F to 158° F); dual-Wi-Fi variants: -20°C to 60°C (-4° F to 140° F); reduced cellular performance may occur above 60° C (140° F) |
| STORAGE TEMPERATURE |
-40° C to 85° C (-40° F to 158° F) |
| RELATIVE HUMIDITY |
0% to 95% (non-condensing) @ 25° C (77° F) |
| ETHERNET ISOLATION |
1.5 kV RMS |
| SERIAL PORT PROTECTION (ESD) |
15 kV |
| APPROVALS |
| CELLULAR |
PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511 |
| CDMA/EV-DO |
CDG TIA/EIA-690, CDG TIA/EIA-98-E |
| SAFETY |
UL 60950, CSA 22.2 No. 60950, EN60950 |
| EMISSIONS/IMMUNITY |
CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55022 Class B |
| INDUSTRY |
Vehicle Usage: E-Mark (Regulation 10.05)
EN 300 019-2-5 (specification for environmental tests for ground vehicle installations - covers temperature, humidity, vibration and shock) |
| WARRANTY |
| PRODUCT WARRANTY |
3-year***** |
