Digi XTend® 900 MHz

NRND

1 Watt Long-Range OEM RF modules


  • ISM 900 MHz operating frequency
  • 100 mW - 1 Watt power output (up to 40 mile range*)
  • 256-bit AES Encryption
  • Available with DigiMesh®
  • Available in smaller, lower power XBee Surface Mount form-factor
How to Buy

XTend RF modules provide unprecedented range in a low-cost wireless data solution. The modules are easy-to-use, require minimal power and provide reliable delivery of critical data between devices. They are also available in the smaller XBee SMT form factor, ideal for applications that are tight on PCB space.

The XTend module utilizes FHSS (Frequency Hopping Spread Spectrum) agility to avoid interference by hopping to a new frequency on every packet transmission or re-transmission. Its transmit power is software adjustable from 100 mW to 1 W—the maximum output power allowable by governments that use 900 MHz as a license-free band. The XTend module is approved for use in the United States, Canada, Australia and other countries (contact Digi for a complete listing).

Key Industries

Heavy Machinery
RF Support Services

RF Support Services from Digi

On-site services and support for RF solution implementation including site survey, integration, training and troubleshooting.

LEARN MORE
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools

Compare Sub-GHz Wireless OEM RF Modules

Compare Sub-GHz Wireless OEM RF Modules

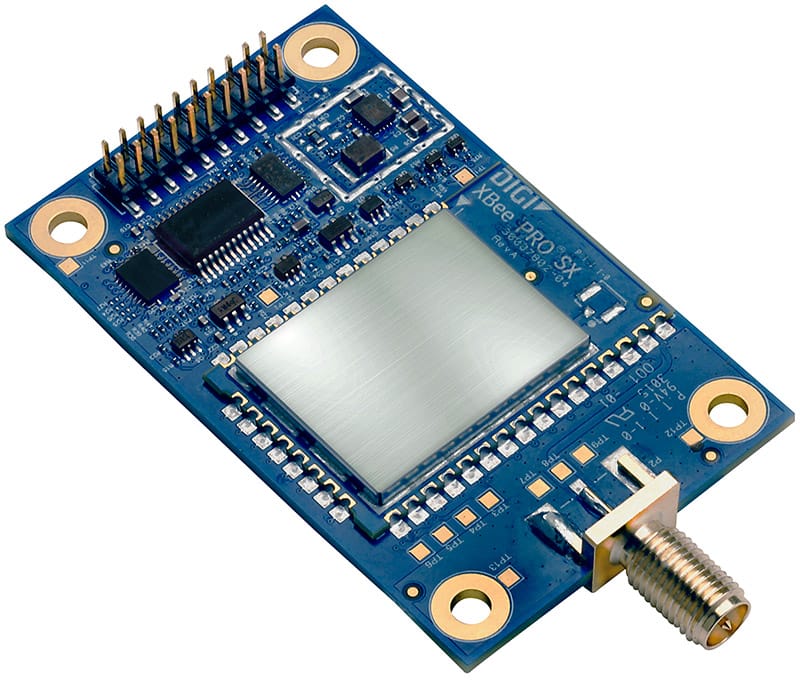

XTend vB Modules
XTP9B-DMM-001 9XTend Replacement, 1W, DigiMesh, MMCX, North America XTP9B-DMM-001 HOW TO BUY
Contact Us
XTP9B-DMS-001 9XTend Replacement, 1W, DigiMesh, RPSMA, North America XTP9B-DMS-001 HOW TO BUY
Contact Us
XTP9B-DPM-001 9XTend Replacement, 1W, P2MP, MMCX, North America XTP9B-DPM-001 HOW TO BUY
Contact Us
XTP9B-DPS-001 9XTend Replacement, 1W, P2MP, RPSMA, North America XTP9B-DPS-001 HOW TO BUY
Contact Us
XTP9B-DPM-721 9XTend Replacement, 1W, P2MP, MMCX, 128 AES, Australia XTP9B-DPM-721 HOW TO BUY
Contact Us
XTP9B-DPS-721 9XTend Replacement, 1W, P2MP, RPSMA, 128 AES, Australia XTP9B-DPS-721 HOW TO BUY
Contact Us
XTend-Compatible XBee Modules

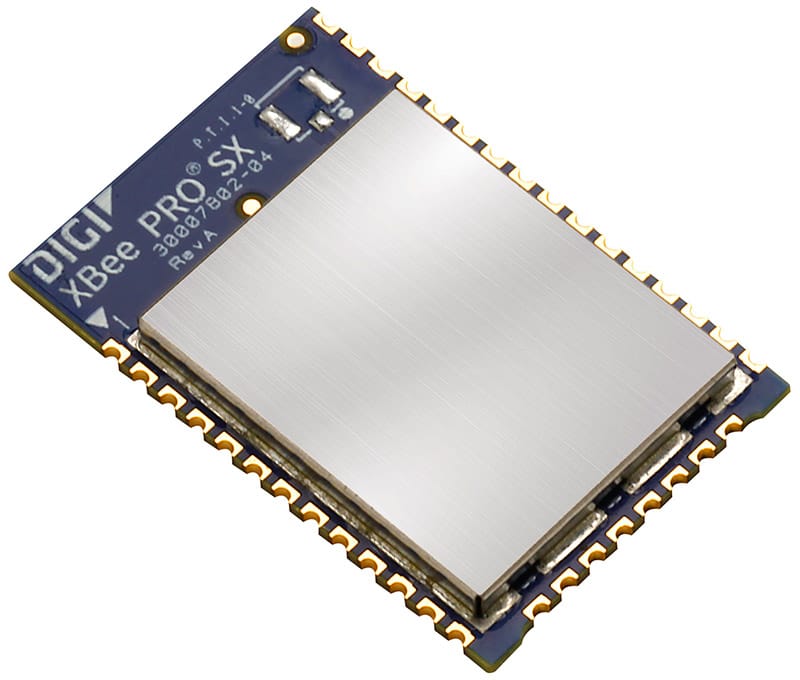

XBP9XT-DMRS-001 XBee-PRO, 1W, XTend Compatible, DigiMesh, SMT, RF Pad XBP9XT-DMRS-001 HOW TO BUY
Contact Us
XBP9XT-DMUS-001 XBee-PRO, 1W, XTend Compatible, DigiMesh, SMT, U.FL XBP9XT-DMUS-001 HOW TO BUY
Contact Us
XBP9XT-DPRS-001 XBee-PRO, 1W, XTend Compatible, P2MP, SMT, RF Pad XBP9XT-DPRS-001 HOW TO BUY
Contact Us

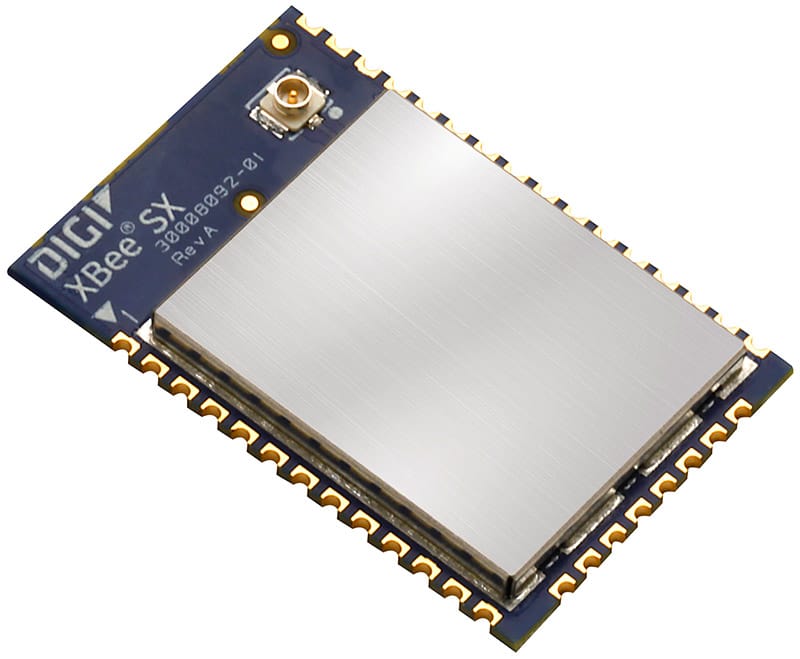

XB9XT-DMUS-001 XBee, 20mW, XTend Compatible, DigiMesh, SMT, U.FL XB9XT-DMUS-001 HOW TO BUY
Contact Us
XB9XT-DMRS-001 XBee, 20mW, XTend Compatible, DigiMesh, SMT, RF Pad XB9XT-DMRS-001 HOW TO BUY
Contact Us
XB9XT-DPUS-001 XBee, 20mW, XTend Compatible, P2MP, SMT, U.FL XB9XT-DPUS-001 HOW TO BUY
Contact Us
XB9XT-DPRS-001 XBee, 20mW, XTend Compatible, P2MP, SMT, RF Pad XB9XT-DPRS-001 HOW TO BUY
Contact Us
XBP9XT-DPUS-001 XBee-PRO, 1W, XTend Compatible, P2MP, SMT, U.FL XBP9XT-DPUS-001 HOW TO BUY
Contact Us
XB9XT-DPRS-721 XBee XTC, 20 mW, P2MP, SMT, RF Pad, 128 AES, Australia XB9XT-DPRS-721 HOW TO BUY
Contact Us
XB9XT-DPUS-721 XBee XTC, 20 mW, P2MP, SMT, U.FL, 128 AES, Australia XB9XT-DPUS-721 HOW TO BUY
Contact Us
XBP9XT-DPRS-721 XBee-PRO XTC, 1W, P2MP, SMT, RF Pad, 128 AES, Australia XBP9XT-DPRS-721 HOW TO BUY
Contact Us
XBP9XT-DPUS-721 XBee-PRO XTC, 1W, P2MP, SMT, U.FL, 128 AES, Australia XBP9XT-DPUS-721 HOW TO BUY
Contact Us
Related
XTend RF 900MHz Modems   GET STARTED
Antennas
A09-HASM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A09-HASM-7 HOW TO BUY
Contact Us
A09-HSM-7 Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HSM-7 HOW TO BUY
Contact Us
A09-Y8NF Antenna - 900 MHz, yagi, 8.1 dBi, N-female. A09-Y8NF HOW TO BUY
Contact Us
A09-Y11NF Antenna - 900 MHz, yagi, 11.1 dBi, N-female. A09-Y11NF HOW TO BUY
Contact Us
A09-HBSM-P5I Antenna - 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HBSM-P5I HOW TO BUY
Contact Us
A09-HBMM-P5I Antenna - 900 MHz, half wave dipole, 2 dBi, MMCX male. A09-HBMM-P5I HOW TO BUY
Contact Us
A09-QRAMM Antenna - 900 MHz, wire, 1.9 dBi, MMCX male. A09-QRAMM HOW TO BUY
Contact Us
Specifications XTend vB Module XBee-PRO XTC Module XBee XTC Module
PERFORMANCE
FREQUENCY RANGE ISM 902 – 928 MHz
INDOOR/URBAN RANGE* Up to 1000 feet (305 m) with 2.1 dB dipole antenna Up to 1000 feet (305 m) with 2.1 dB dipole antenna Up to 360 ft (110 m)
OUTDOOR RF LINE-OF-SIGHT RANGE* Up to 40 miles (64 km) with high gain antenna; Up to 14 miles (22 km) with 2.1 dB dipole antenna Up to 40 miles (64 km) with high gain antenna; Up to 14 miles (22 km) with 2.1 dB dipole antenna Up to 5 miles with high gain antenna
TRANSMIT POWER (SOFTWARE SELECTABLE) 100 mW - 1 W (20 - 30 dBm) 100 mW - 1 W (20 - 30 dBm) Up to 13 dBm
INTERFACE DATA RATE 1,200 - 230,400 bps (including non-standard baud rates)
RECEIVER SENSITIVITY (1% PER) -110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps)
RF DATA RATE 10 kbps to 125 kbps

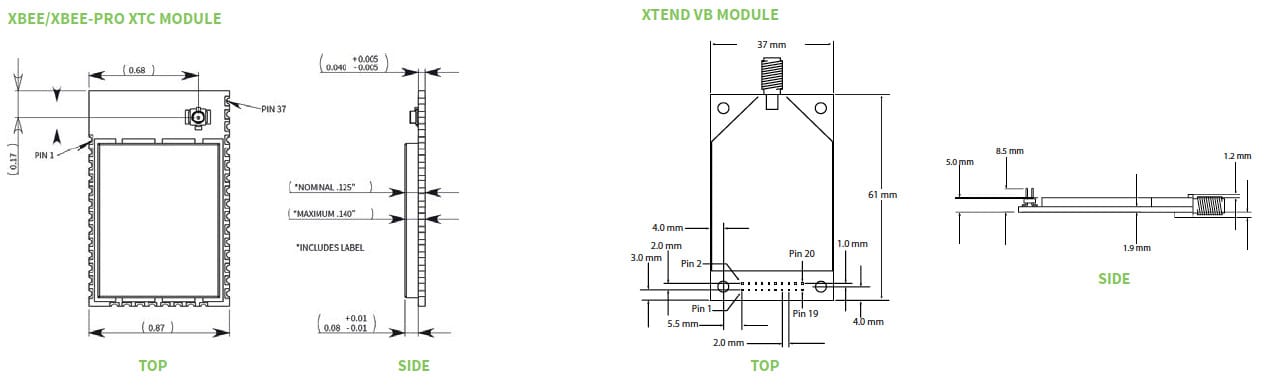

HARDWARE INTERFACE 20 pin 2 mm pitch header 37 castellated SMT pads 37 castellated SMT pads
SIZE 3.7 cm x 6.1 cm x 4.8 cm 3.38 cm x 2.21 cm x 1.29 cm 3.38 cm x 2.21 cm x 1.29 cm
ANTENNA OPTIONS MMCX, RPSMA RF Pad, U.FL RF Pad, U.FL
NETWORKING AND SECURITY
SPREAD SPECTRUM FHSS (Frequency Hopping Spread Spectrum)
MODULATION FSK (Frequency Shift Keying)
SUPPORTED NETWORK TOPOLOGIES Point-to-Point, Point-to-Multipoint, Repeater, Mesh
CHANNEL CAPACITY 10 hop sequences share 50 frequencies
ENCRYPTION 256-bit / 128-bit AES
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.8 – 5.5 VDC 2.6 – 3.6 VDC 2.4 – 3.6 VDC
RX CURRENT 35 mA @ 5V 40 mA @ 3.3V 40 mA @ 3.3V
TRANSMIT CURRENT Up to 710 mA @ 30 dBm Up to 900 mA @ 30 dBm Up to 55 mA @ 13 dBm
SHUTDOWN MODE POWER DOWN 1 µA typical
PIN SLEEP POWER DOWN < 147 μA 2.5 uA 2.5 uA
CYCLIC SLEEP (IDLE CURRENT) 0.3 – 0.8 mA (16 sec cyclic sleep)
ENVIRONMENTAL
OPERATING TEMPERATURE -40º C to 85º C (Industrial)
CERTIFICATIONS
FCC ID (U.S. CERTIFICATION PART 15.247) MCQ-XBPSX MCQ-XBPSX MCQ-XBSX
IC ID (CANADA) 1846A-XBPSX 1846A-XBPSX 1846A-XBSX
C-TICK (AUSTRALIA) RCM

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
