Digi XBee RF Modules

RF modules in multiple form factors for embedded IoT designs

Digi XBee RF modules provide wireless connectivity in a range of protocols and form factors to support today's low-power applications. Easy-to-deploy, pre-certified, and configurable using Digi XCTU, the Digi XBee Mobile App and Digi Remote Manager® (Digi RM), these low-cost modules support all of your wireless design requirements.

2.4 GHz RF Modules

Digi XBee 3 Zigbee 3 RF Module

Digi XBee 3 Zigbee 3 RF Module

Easy-to-add connectivity in a compact, low-power, low-profile footprint

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh® and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
Add to compare
Digi XBee 3 802.15.4 RF Module

Digi XBee 3 802.15.4 RF Module

Low-cost, easy-to-deploy modules for critical end-point device and sensor connectivity

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh®, and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
Add to compare
Digi XBee 3 DigiMesh 2.4 RF Module

Digi XBee 3 DigiMesh 2.4 RF Module

Wireless connectivity using the innovative and easy-to-deploy DigiMesh® protocol

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh®, and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
Add to compare
Digi XBee<span>®</span> Wi-Fi

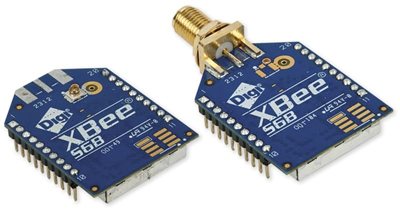

Digi XBee Wi-Fi

OEM Module with Fully Integrated Support for Digi Remote Manager

NRND
  • Build cloud-connected Wi-Fi prototypes in under an hour
  • Popular XBee Through-Hole and Surface-Mount footprints
  • Ideal for Industrial Applications that require fast time to market
  • Easily connect to a smartphone or tablet for configuration or data transfer
  • 802.11b/g/n provides up to 72 Mbps data rate
Add to compare
Digi XBee<span>®</span> Zigbee

Digi XBee Zigbee

Embedded ZigBee modules provide OEMs with a simple way to integrate mesh technology into their application

NRND
  • Programmable versions with on-board microprocessor enable custom Zigbee application development
  • Through-Hole and Surface Mount form factors enable flexible design options
  • Link budgets of 110 dB for XBee and 119 dB for XBee-PRO
  • Industry-leading sleep current
  • Firmware upgrades via UART, SPI or over the air (OTA)
  • Turnkey development available from Digi WDS
Add to compare
Digi XBee<span>®</span> 802.15.4

Digi XBee 802.15.4

Low-cost, easy-to-deploy RF modules provide critical end-point connectivity to devices and sensors

NRND
  • Simple, out-of-the-box RF communications, no configuration needed
  • Point-to-multipoint network topology
  • 2.4 GHz for worldwide deployment
  • Common XBee footprint for a variety of RF modules
  • Industry leading sleep current of sub 1uA
  • Firmware upgrades via UART, SPI or over the air
  • Migratable to DigiMesh and Zigbee PRO protocols and vice-versa
  • Turnkey development available from Digi WDS
Add to compare
Digi XBee<span>®</span> DigiMesh<span>®</span> 2.4

Digi XBee DigiMesh 2.4

Wireless Mesh Networking RF Module

NRND
  • No configuration needed for out-of-the-box RF communications
  • Common Digi XBee footprint for a variety of RF modules
  • Simple topology to deploy and grow
  • 2.4 GHz for worldwide deployment
  • Low-power Digi XBee or extended-range XBee-PRO (pin/over-the-air compatible)
  • Multiple antenna options
  • Outdoor RF line-of-sight range up to 2 miles (3.2 km)* with high-gain antennas
  • DigiMesh® peer-to-peer mesh networking protocol
Add to compare

Sub-1 GHz RF Modules

Digi XBee SX 868 RF Module

Digi XBee SX 868 RF Module

RF module family operates in the 863-870 MHz range delivering superior performance and interference immunity at 868 MHz

  • Low-power CE/RED certified 868 MHz RF module based on Silabs EFM32 and ADI7023
  • Design includes SAW filter for optimal performance in noisy RF environments
  • OTA and pin compatible with legacy Digi XBee® 868LP
  • Listen-Before-Talk and Frequency Agility for optimal interference immunity
  • DigiMesh® networking topology for redundancy and reliability
  • Simple configuration using XCTU® accelerates time to market
Add to compare
Digi XBee SX 900 RF Module

Digi XBee SX 900 RF Module

900 MHz OEM RF modules pack maximum power, security, and flexibility into the Digi XBee SMT footprint for mission-critical wireless designs

  • Family includes powerful 1-Watt 900 MHz Digi XBee-PRO SX 900 and battery-optimized 20 mW Digi XBee SX 900 modules for mission-critical OEM designs
  • DigiMesh networking topology for redundancy and reliability
  • Design includes SAW filter for optimal performance in noisy RF environments
  • 256-bit AES encryption for secure data communications
  • Digi XBee SMT form factor saves valuable PCB space
  • Fully certified for use in unlicensed 900 MHz band
Add to compare
Digi XBee-PRO 900HP RF Module

Digi XBee-PRO 900HP RF Module

Long Range 900 MHz OEM RF Module

  • Superior LOS range of up to 28 miles* with high-gain antenna
  • Simplified AT command set and advanced XBee API
  • Over-the-air firmware updates
  • Software-selectable channel mask for interference immunity
  • Advanced sleep modes: sleeping routers, pin sleep, cyclic sleep
  • Try these modules out with a XBee-PRO 900HP DigiMesh Kit
Add to compare
Digi XBee-PRO<span>®</span> XSC

Digi XBee-PRO XSC

900 MHz Long-Range RF Module

NRND
  • For new designs that do not require interoperability with 9XStream radios, see XBee-PRO 900HP
  • Over-the-air compatibility with legacy 9XStream products
  • 20 times less current draw than previous XSC module
  • Superior outdoor LOS range of up to 28 miles*
Add to compare
Digi XTend<span>®</span> 900 MHz

Digi XTend 900 MHz

1 Watt Long-Range OEM RF modules

NRND
  • ISM 900 MHz operating frequency
  • 100 mW - 1 Watt power output (up to 40 mile range*)
  • 256-bit AES Encryption
  • Available with DigiMesh®
  • Available in smaller, lower power XBee Surface Mount form-factor
Add to compare
Digi IX15 Gateway

NEW

Digi IX15 IoT Gateway and Cellular Router

Programmable IoT gateway connects Digi XBee-enabled devices to remote applications over cellular and Ethernet

The versatile Digi IX15 device functions as both gateway and router for customers seeking lower-cost, quicker-to-market alternatives to chip-down DIY designs for networking operations.

LEARN MORE
Digi XBee Ecosystem

Explore the Digi XBee Ecosystem

Digi XBee is more than a module. It's a complete ecosystem of RF modules, gateways, adapters, and software, all engineered to accelerate wireless development for global deployments. One socket allows you to connect to IoT networks around the globe. With the authentic Digi XBee footprint, you can future-proof your design and know that Digi has you covered for new technologies as they emerge.

Digi XBee Ecosystem
