Digi offers a variety of routers running the Digi Accelerated Linux operating system. One powerful aspect of the firmware is that it allows customers access to the Linux shell in case they want to write / run Linux bash scripts. For this article we will use the
Digi IX14 as an example.
Run the "runt" command
If you need to know exactly what is exposed by the router’s API, and how you might be able to collect or set a specific value, you will need to use the “runt” command and perform a dump:
runt dump

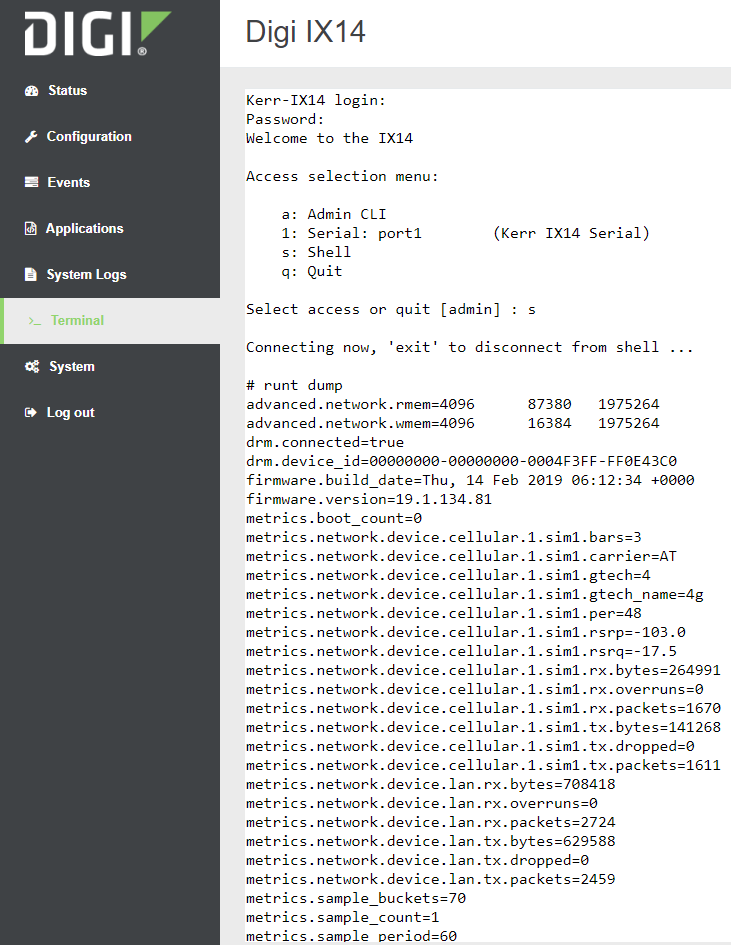

This will give you a
complete list of all exposed settings:
This may be far more information than you need. It is also possible to limit the list to a partial match by appending a pipe symbol | and grep <term>. Something like the following allows you to find out about the power supply voltage coming into a Digi IX14 – very useful for understanding when a router is running on power mains versus battery backup:
runt dump | grep vol
This will return the following:
# runt dump | grep vol
system.supply_voltage=12.256759
With this information, it becomes very easy to query precisely the value you want by adding “get” to the request:
# runt get system.supply_voltage
12.256759
If you need additional help, please see the options provided below.
