Digi XBee 3 DigiMesh 2.4 RF Module

Wireless connectivity using the innovative and easy-to-deploy DigiMesh® protocol

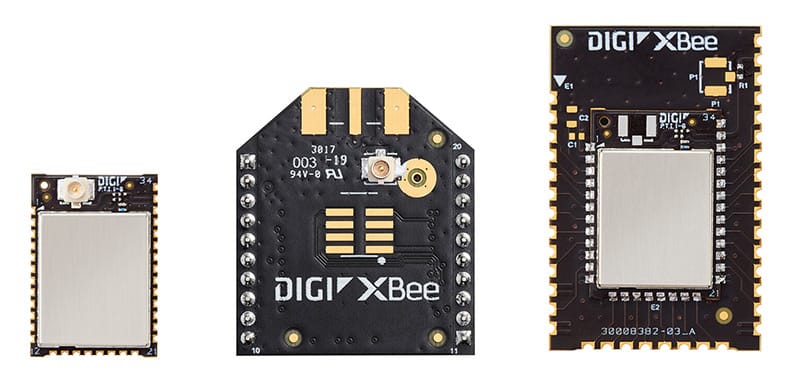

  • At 13 mm x 19 mm, the new Digi XBee® 3 micro form factor allows for more compact and portable applications
  • Digi XBee 3 is one module for all protocols including: Zigbee, 802.15.4, DigiMesh®, and BLE, all configurable via Digi XCTU®
  • Eliminate the need for an external microcontroller and create smart end nodes using MicroPython
  • Bluetooth® Low Energy for beaconing, connecting to Bluetooth sensors and local configuration using the Digi XBee Mobile app
  • Intrinsic IoT security with Digi TrustFence®, a layered approach securing the edge device, through the gateway, into and out of the IoT
How to Buy

Digi XBee® 3 modules accelerate time to market for designers, OEMs and solution providers by quickly enabling wireless connectivity and easy-to-add functionality. Building on industry-leading technology, pre-certified Digi XBee 3 modules offer the flexibility to switch between multiple frequencies and wireless protocols as needed.

These modules use the DigiMesh® networking protocol using a globally deployable 2.4 GHz transceiver. This peer-to-peer mesh network offers users added network stability through self-healing, dense network operation, extending the operational life of battery dependent networks and provides an upgrade path to IEEE 802.15.4 or Zigbee mesh protocols, if desired.

With Digi Remote Manager®, Digi XBee 3 modules can be easily configured and controlled from a simple, central platform. Built-in Digi TrustFence® security, identity and data privacy features use more than 175 controls to protect against new and evolving cyber threats. MicroPython and Digi XCTU® software tools simplify adding functionality, configuration and testing.

From edge computing to future migration, Digi XBee modules offer size, weight, power and performance advantages ideal for scalable device connectivity. A versatile addition to the expanding Digi XBee Ecosystem of wireless modules, adapters and software, the Digi XBee 3 series is engineered to accelerate development and deployment.

XCTU

Next Generation Configuration Platform for Digi XBee

  • XCTU is free and compatible with Windows, MacOS and Linux.
  • Simple wireless network configuration and architecture.
  • Simple development tool for quickly building XBee API frames.
  • Explore and read firmware release notes.
Learn More
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
Kit
XK3-Z8S-WZM Digi XBee 3 Zigbee Mesh Kit, worldwide XK3-Z8S-WZM HOW TO BUY
Contact Us
Modules
XB3-24DMRM-J Digi XBee 3, 2.4 Ghz, DigiMesh, Micro, RF Pad Ant, MMT XB3-24DMRM-J HOW TO BUY
Contact Us

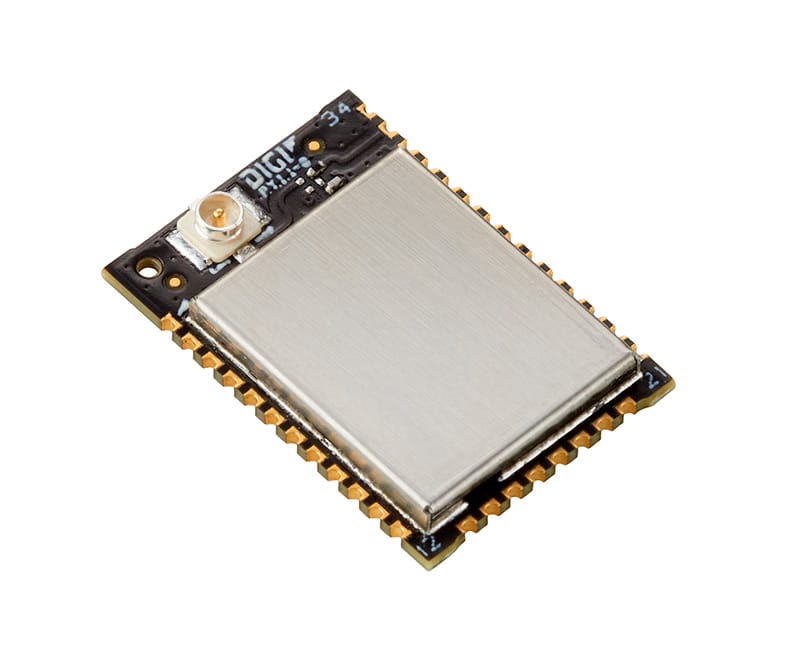

XB3-24DMUM-J Digi XBee 3, 2.4 Ghz, DigiMesh, Micro, U.FL Ant, MMT XB3-24DMUM-J HOW TO BUY
Contact Us
XB3-24DMCM-J Digi XBee 3, 2.4 Ghz, DigiMesh, Micro, Chip Ant, MMT XB3-24DMCM-J HOW TO BUY
Contact Us
XB3-24DMUS-J Digi XBee 3, 2.4 Ghz, DigiMesh, U.FL Ant, SMT, XB3-24DMUS-J HOW TO BUY
Contact Us

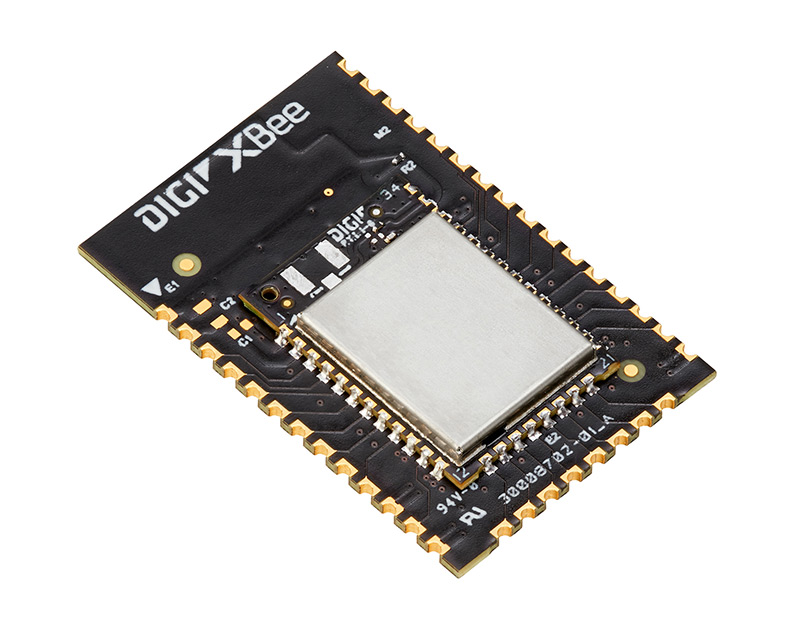

XB3-24DMPS-J Digi XBee 3, 2.4 Ghz, DigiMesh, PCB Ant, SMT XB3-24DMPS-J HOW TO BUY
Contact Us
XB3-24DMRS-J Digi XBee 3, 2.4 Ghz, DigiMesh, RF Pad Ant, SMT XB3-24DMRS-J HOW TO BUY
Contact Us
XB3-24DMUT-J Digi XBee 3, 2.4 Ghz, DigiMesh, U.FL Ant, TH XB3-24DMUT-J HOW TO BUY
Contact Us
XB3-24DMPT-J Digi XBee 3, 2.4 Ghz, DigiMesh, PCB Ant, TH XB3-24DMPT-J HOW TO BUY
Contact Us
XB3-24DMST-J Digi XBee 3, 2.4 Ghz, DigiMesh, RPSMA, TH XB3-24DMST-J HOW TO BUY
Contact Us
XB3-24DMRM Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, Micro, RF Pad Ant, MMT XB3-24DMRM HOW TO BUY
Contact Us
XB3-24DMUM Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, Micro, U.FL Ant, MMT XB3-24DMUM HOW TO BUY
Contact Us
XB3-24DMCM Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, Micro, Chip Ant, MMT XB3-24DMCM HOW TO BUY
Contact Us
XB3-24DMUS Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, U.FL Ant, SMT XB3-24DMUS HOW TO BUY
Contact Us
XB3-24DMPS Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, PCB Ant, SMT XB3-24DMPS HOW TO BUY
Contact Us
XB3-24DMRS Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, RF Pad Ant, SMT XB3-24DMRS HOW TO BUY
Contact Us
XB3-24DMUT Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, U.FL Ant, TH XB3-24DMUT HOW TO BUY
Contact Us
XB3-24DMPT Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, PCB Ant, TH XB3-24DMPT HOW TO BUY
Contact Us
XB3-24DMST Digi XBee 3 PRO, 2.4 Ghz, DigiMesh, RPSMA, TH XB3-24DMST HOW TO BUY
Contact Us
A24-HABUF-P5I Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, U.FL female, articulating. A24-HABUF-P5I HOW TO BUY
Contact Us
A24-HASM-450 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-450 HOW TO BUY
Contact Us
A24-HASM-525 Antenna - 2.4 GHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A24-HASM-525 HOW TO BUY
Contact Us
DC-ANT-24DT Antenna - Wi-Fi, table-top mount, 2450 Mhz, 0.5 m cable DC-ANT-24DT HOW TO BUY
Contact Us
Development Boards
XBIB-C-MMT Development board - XBee 3, USB-C, micro XBIB-C-MMT HOW TO BUY
Contact Us
Digi XBee Multi Programmer
XBEE-MP-MCRO Digi XBee Multi Programmer, micro form factor (MMT) XBEE-MP-MCRO HOW TO BUY
Contact Us
XBEE-MP-MCRO-PCB Digi XBee Multi Programmer, micro form factor (MMT) printed circuit board XBEE-MP-MCRO-PCB HOW TO BUY
Contact Us
Digi XBee 3 USB Adapters
XU3-A11 Digi XBee 3 USB Adapter - US, Canada and EMEA XU3-A11 HOW TO BUY
Contact Us
Specifications Digi XBee® 3 DigiMesh® Digi XBee® 3 DigiMesh® PRO
PERFORMANCE
TRANSCEIVER CHIPSET Silicon Labs EFR32MG SoC
DATA RATE RF 250 Kbps, Serial up to 1 Mbps
INDOOR/URBAN RANGE* Up to 60 m (200 ft) Up to 90 m (300 ft)
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 1200 m (4000 ft) Up to 3200 m (2 miles)
TRANSMIT POWER +8 dBm +19 dBm
RECEIVER SENSITIVITY (1% PER) -103 dBm Normal Mode
FEATURES
SERIAL DATA INTERFACE UART, SPI, I2C
CONFIGURATION METHOD API or AT commands, local or over-the-air (OTA)
FREQUENCY BAND ISM 2.4 GHz
FORM FACTOR Micro, through-hole, surface mount
INTERFERENCE IMMUNITY DSSS (Direct Sequence Spread Spectrum)
ADC INPUTS (4) 10-bit ADC inputs
DIGITAL I/O 15
ANTENNA OPTIONS Through-hole: PCB Antenna, U.FL Connector, RPSMA Connector
SMT: RF Pad, PCB Antenna, or U.FL Connector
Micro: U.FL Antenna, RF Pad, Chip Antenna
OPERATING TEMPERATURE -40º C to 85º C (-40º F to 185º F)
DIMENSIONS (L X W X H) Through-hole: 2.438 x 2.761 cm (0.960 x 1.087 in)
SMT: 2.199 x 3.4 x 0.305 cm (0.866 x 1.33 x 0.120 in)
Micro: 13 x 19 x 2 mm (0.533 x 0.76 x 0.087 in)
PROGRAMMABILITY
MEMORY 1 MB / 128 KB RAM
CPU/CLOCK SPEED HCS08 / up to 50.33 MHz
NETWORKING AND SECURITY
PROTOCOL 802.15.4
ENCRYPTION 128/256 bit AES
RELIABLE PACKET DELIVERY Retries/Acknowledgements
IDS PAN ID and addresses, cluster IDs and endpoints (optional)
CHANNELS 16 channels
POWER REQUIREMENTS
SUPPLY VOLTAGE 2.1 to 3.6 V
TRANSMIT CURRENT 135 mA @ 19 dBm
RECEIVE CURRENT 17 mA
POWER-DOWN CURRENT 2 micro Amp @ 25º C (77º F)
REGULATORY APPROVALS
FCC, IC (NORTH AMERICA) Yes Yes
ETSI (EUROPE) Yes No
RCM (Australia) Yes Yes
Anatel (Brazil) Yes Yes
Teleck MIC (Japan) Yes No
KCC (South Korea) Yes Yes

Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
