Wireless Vehicle Bus Adapter (WVA)

J1708/J1939 to Wi-Fi Adapter


  • On-board J1939/J1708 message processing simplifies integration with applications
  • Less than 5 minutes to install, uninstall or replace
  • No cabling, no cluttering of the cab
  • Supports emerging mobile devices: Android and iOS smartphones, tablets and OBCs
  • Power management to minimize drain on vehicle battery
How to Buy

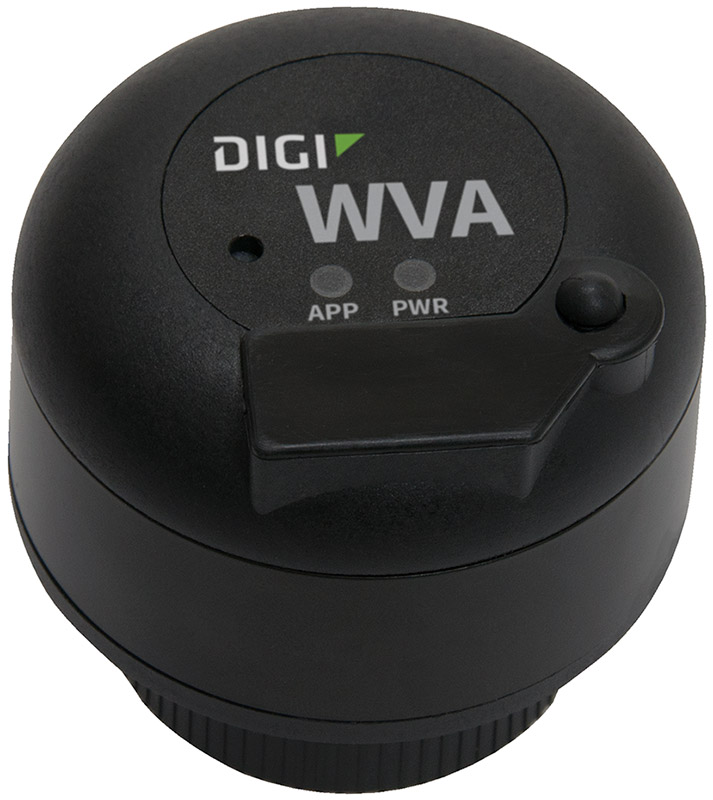

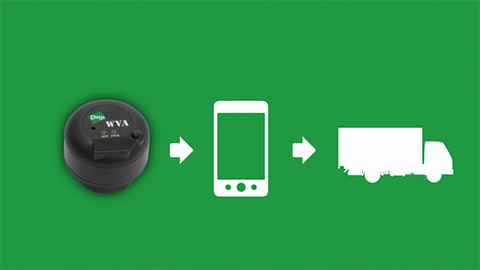

Digi's Wireless Vehicle Bus Adapter (WVA) is a rugged, compact plug-in device that provides easy access to vehicle data via standard Wi-Fi and web services. The Digi WVA installs in minutes by connecting directly into the diagnostic port of the vehicle. Support for J1708 and J1939 standards allows the WVA to work with almost any fleet vehicle on the road today.

The WVA enables Transportation Solution Providers to reduce their development costs, have fastest time to market and expand their solution offering. Low-cost hardware plus a zero dollar installation cost allows TSPs to target medium and small fleets with their solution; something that has been cost prohibitive until now.

A web services API accelerates integration with existing applications. Vehicle data can be read, subscribed to, or have programmed alert levels. The WVA handles the J1708/J1939 protocols and delivers only the vehicle data your application needs. The WVA stays up-to-date with the latest J1939 standards, meaning your application does not need to change when the standard changes.

Key Industries

Heavy MachineryFleet
Speed, odometer readings, engine use, and other vehicle-specific information are available in real time to dispatchers, fleet managers, and other participants, adding another level of efficiency and compliance throughout the supply chain.

Huw Thomas, CEO of Qv21 Technologies

Read the full release

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.
Specifications Wireless Vehicle Bus Adapter (WVA)
General
Management WebUI, Digi Remote Manager®
Software REST web services
Operating System Linux
Security HTTPS, WPA2, Admin password
Memory Total: 128 MB Flash, 64 MB RAM; Available user space: 20 MB Flash
LEDs Power, SW defined
Antenna Internal
Mechanical
Device Connector 9-Pin Deutsch
Dimensions (Height x Diameter) 5.9 cm x 5.5 cm (2.33 in x 2.15 in)
Weight 0.12 kg (0.26 lb)
Wi-Fi
802.11 b/g/n
Data Rate Up to 72.2 Mbps
Transmit Power 1 MB: 12.5 dBm; 54 MB: 12.25 dBm; 65 MB: 9.25 dBm
Receiver Sensitivity 1 MB: -91 dBm; 54 MB: -75 dBm; 65 MB: -71 dBm
Modes Access point, client and dual modes
Wi-Fi Security WPA2
Interfaces
USB Type A; Host mode only
Buzzer Yes; SW defined
Accelerometer 3 Axis (2/4/8g selectable)
Vehicle Bus Dual J1939 (CAN) and J1708
CAN Baud Rates Up to 500 kbps
Power Requirements
Power Input/Power Supply 9-36 VDC
Power Consumption Peak: 2.5 W, Idle: 1.5 W, Sleep 30 mW
Environmental/Regulatory Approvals
NEMA IP54
Operating Temperature -40° C to 70° C (-40° F to 158° F)
Storage Temperature -40° C to 85° C (-40° F to 185° F)
Safety UL 62638-1, EN 62368-1, CSA 22.2 No. 62638
EMC FCC part 15 subpart C section 15.247, CISPR25, EN55032, EN55024, Industry Canada RSS210 Issue 8, CISPR 22
Automotive ISO-10452, ISO-10605, SAE 1455, ISO 7637, J1113-2
