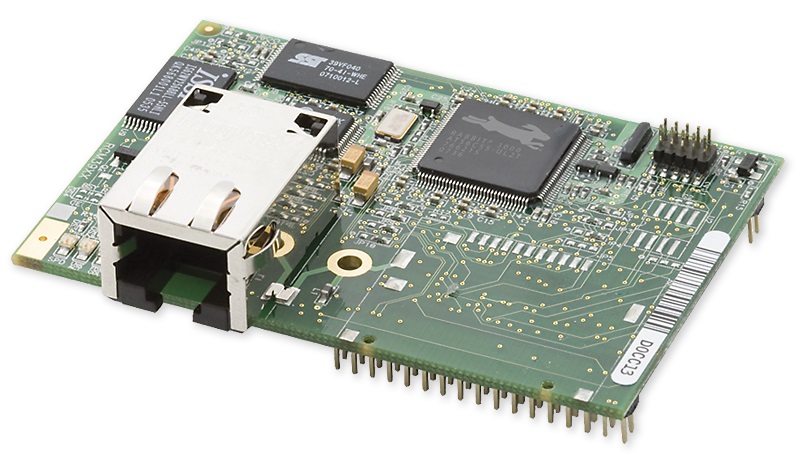

RabbitCore® RCM3209 Series

NRND

Microprocessor Core Module


  • Rabbit 3000 microprocessor at 44 MHz
  • Optional 10/100Base-T Ethernet
  • 512K Flash / 256K SRAM / 512K Program Execution SRAM
  • 52 digital I/O and 6 serial ports for multiple connectivity options
How to Buy

Based on the Rabbit® 3000, the RabbitCore RCM3209 series provides the capability to integrate real-time control and Ethernet connectivity into your design. Engineers are freed from the limitations of serial port communications, allowing worldwide connectivity using low-cost networking hardware. The RCM3209 series replaces the previous RCM3200 versions as it adds the full industrial temperature spec.

The RCM3209 series and Dynamic C® are designed in a complementary fashion for maximum performance and ease of use. Rabbit’s industry-proven Dynamic C is a C language environment that includes an editor, compiler and in-circuit debugger; no in-circuit emulator is required. An extensive library of drivers, sample programs and royalty-free TCP/IP stack with source code is included.

The RCM3200 RabbitCore module series is a compact, simple solution to implement embedded functionality with options for 10/100Base-T Ethernet connectivity and industrial temperature range.

RabbitCore modules mount directly onto a user-designed motherboard and act as the controlling microprocessor for the system. The Ethernet device used on the RCM3209 series is able to detect automatically whether a crossover cable or a straight-through cable is being used in a particular setup, and will configure the signals on the Ethernet jack interface accordingly.

Developing with RabbitCores

The RabbitCore family of microprocessor core modules is designed to facilitate rapid development and implementation of embedded systems.

Features
  • Rabbit® 3000 microprocessor @ 44.2 MHz
  • Battery-backed real-time clock
  • Low power “sleepy” modes
  • Easily interfaces with another processor-based board for distributed embedded systems
Design Advantages
  • Known good hardware to reduce design effort
  • Mount directly on a user-designed motherboard
  • Dynamic C® development environment for real-time development
  • Debug software directly on the target hardware
Designing with RabbitCores

The RCM3200 series is powered by the Rabbit 3000 microprocessor with extensive integrated features and a C-friendly instruction set designed for use with the development system

Develop programs with our industry-proven Dynamic C® integrated development environment, which includes an editor, compiler, and in-circuit debugger. This environment reduces effort and speeds hardware and software integration. Rabbit provides an extensive library of drivers and sample programs, along with royalty-free TCP/IP stack with source.

Download the program from your PC via USB or serial port, and debug right on the target hardware – no in-circuit emulation is required.

The RCM3200 RabbitCore module series is a compact, simple solution to implement embedded functionality with options for 10/100Base-T Ethernet connectivity and industrial temperature range.

RabbitCore modules mount directly onto a user-designed motherboard and act as the controlling microprocessor for the system. The Ethernet device used on the RCM3209 series is able to detect automatically whether a crossover cable or a straight-through cable is being used in a particular setup, and will configure the signals on the Ethernet jack interface accordingly.

Features
  • Rabbit® 3000 microprocessor @ 44.2 MHz
  • Battery-backed real-time clock
  • Low power “sleepy” modes
  • Easily interfaces with another processor-based board for distributed embedded systems
Design Advantages
  • Known good hardware to reduce design effort
  • Mount directly on a user-designed motherboard
  • Dynamic C® development environment for real-time development
  • Debug software directly on the target hardware
Designing with RabbitCores

The RCM3200 series is powered by the Rabbit 3000 microprocessor with extensive integrated features and a C-friendly instruction set designed for use with the development system

Develop programs with our industry-proven Dynamic C® integrated development environment, which includes an editor, compiler, and in-circuit debugger. This environment reduces effort and speeds hardware and software integration. Rabbit provides an extensive library of drivers and sample programs, along with royalty-free TCP/IP stack with source.

Download the program from your PC via USB or serial port, and debug right on the target hardware – no in-circuit emulation is required.

Dynamic C Software Development System

Industry-proven Dynamic C® includes an editor, compiler, and in-circuit debugger. Programming is easy with hundreds of samples and libraries that can be used as building blocks to your code.


Product Type RCM3209 RCM3229
Features
Microprocessor Rabbit® 3000 at 44 MHz
EMI Reduction Spectrum spreader for reduced EMI (radiated emissions)
Ethernet Port 10/100Base-T, RJ-45, 3 LEDs N/A
Flash Memory 512K
Data SRAM 256K
Program Execution SRAM 512K
Backup Battery Connection for user-supplied backup battery (to support RTC and data SRAM)
General-Purpose I/O 52 parallel digital I/0 lines:
  • 44 configurable I/O
  • 4 fixed inputs
  • 4 fixed outputs
Additional Inputs Startup mode (2), reset in
Additional Outputs Status, reset out
External I/O Bus Can be configured for 8 data lines and 6 address lines (shared with parallel I/O lines), plus I/O read/write
Serial Ports 6 shared high-speed, CMOS-compatible ports:
  • All 6 configurable as asynchronous (with IrDA), 4 as clocked serial (SPI), and 2 as SDLC/HDLC (with IrDA)
  • 1 asynchronous serial port dedicated for programming
  • Support for MIR/SIR IrDA transceiver
Serial Rate Maximum asynchronous baud rate = CLK/8
Slave Interface A slave port allows the RCM3209/RCM3229 to be used as an intelligent peripheral device slaved to a master processor, which may either be another Rabbit 3000 or any other type of processor
Real-Time Clock Yes
Timers Ten 8-bit timers (6 cascadable), one 10-bit timer with 2 match registers
Watchdog/Supervisor Yes
Pulse-Width Modulators 10-bit free-running counter and four pulse-width registers
Input Capture 2-channel input capture can be used to time input signals from various port pins
Power 3.15V to 3.45VDC 325 mA @ 3.3V 3.15V to 3.45VDC 190 mA @ 3.3V
Quadrature Decoder Edge connectors for interface with 52-pin mini PCI Express socket
Operating Temperature -40° C to +85° C
Humidity 5% to 95%, non-condensing
Connectors Two 2 × 17, 2 mm pitch
Board Size 1.850” × 2.725” × 0.86” (47 mm × 69 mm × 22 mm)
Product Warranty 1 year
