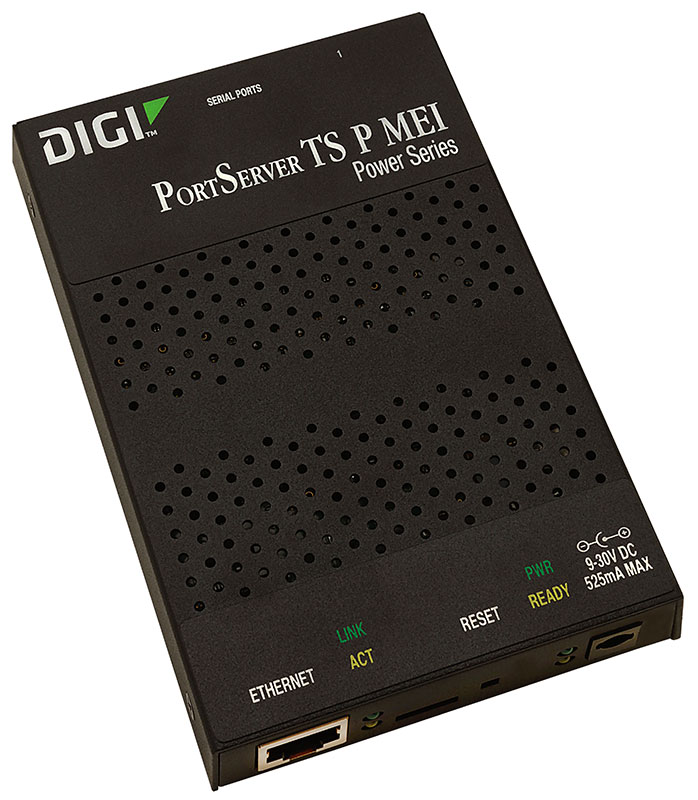

PortServer® TS P MEI

RS-232/422/485 Serial Server with Powered Serial and Ethernet Options


  • End-span and mid-span PoE (Power over Ethernet)
  • Device server with 2 or 4 RS-232/422/485 serial ports
  • Serial port expansion for devices in locations where power outlets aren’t available
  • Serial-to-Ethernet connectivity
How to Buy

PortServer TS P MEI makes it easy to connect RS-232/422/485 serial devices to an IP network. By supporting versatile powering options like powered Ethernet and powered serial, this serial server can adapt to many applications where traditional power alternatives are required.

Powered Ethernet (802.3af, mid- and end-span support) makes it possible to run just one Ethernet cable to the device server for both power and communications. The powered serial feature enables PortServer TS P MEI to power a device over serial using Ring Indicator (RI) or DTR pins. Each power feature is available in addition to a traditional power connector, and can serve as redundant power in case of an outage from either source.

Available in two- and four-port versions, PortServer TS P MEI delivers universal, high performance multiport serial-to- Ethernet connectivity. It is ideal for applications requiring COM ports, serial tunneling, or where TCP/UDP Socket functionality is needed.

Specifications PortServer TS 2 P MEI PortServer TS 4 P MEI
Features
Management HTTP/HTTPS, CLI, SNMP (read/write), Digi Port Authority-Remote management diagnostics and auto-discovery tool
Protocols UDP/TCP, PPP, DHCP/RARP/ARP-Ping for IP Address assignment, Extended Telnet RFC 2217, Telnet, Reverse Telnet, Modbus to Modbus/TCP protocol conversion support
Software Supports Digi’s Realport® COM port redirector
Security SSHv2
Status LEDs Link, Power
Operating Systems AIX, HP-UX, Solaris, Linux®, Windows® 2000, Windows® XP, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows Server® 2003, Windows Server® 2008, Windows Server® 2012. Note: TCP/UDP socket services are operating system independent
Dimensions
(L x W x D)
5.25 in x 3.33 in x 0.95 in (13.34 cm x 8.46 cm x 2.42 cm)
Weight 2.25 oz (64.00 g)
Other 802.3af powered Ethernet (mid- and end-span); Full modem and hardware flow control, Modem emulation, Port buffering, RJ45-DB-9F console adapter included for optional serial configuration
Interfaces
Serial
Ports 2 RS-232/422/485 RJ-45 (switch selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD

4 RS-232/422/485 RJ-45 (switch selectable); Up to 230 Kbps throughput; Signal support for TXD, RXD, RTS, CTS, DTR, DSR, DCD

Ethernet
Ports 1 RJ-45 10/100 Mbps 10/100Base-T (auto-sensing); Full or half duplex
Power Requirements
Power Input 9-30 VDC
Power Supply (included) North America: 12 VDC/.5A max out; 120 VAC in (wall mount); International: 12 VDC/.5A max out; 100-240 VAC in (small brick)
Power Consumption Typical: 4 W; Max: 6 W
Product Surge Protection (ESD) 4 kV burst (EFT) per EN61000-4-4, 2 kV surge transient per EN61000-4-5
Powered Ethernet Ethernet Power, IEEE 802.3af compliant, pins 4/5(+) and 7/8(-); 4 kV burst (EFT) per 1000-4-4; 2 kV surge per EN61000-4-5
Serial Power Input DC input connector, 9-30 VDC, 525 mA max; Serial Port 1, Pin 1 (RI), 9-30 VDC, 525 mA max
Serial Power Output Available on all serial ports; 1 watt available power with selectable voltage level; Pin 1 (RI) 5 VDC up to 200 mA max; Pin 9 (DTR) 9 VDC up to 100 mA max
Environmental
Operating Temperature 0° C to 50° C (32° F to 122° F)
Relative Humidity 5% to 90% (non-condensing)
Ethernet Isolation 1500 VAC min per IEEE802.3/ANSI X3.263
Serial Port Protection (ESD) 15 kV human body model
Regulatory Approvals
Safety  UL 1950, CSA 22.2 No. 950
Emissions/Immunity CE, FCC Part 15 (Class A), EN55024, EN55022 Class A

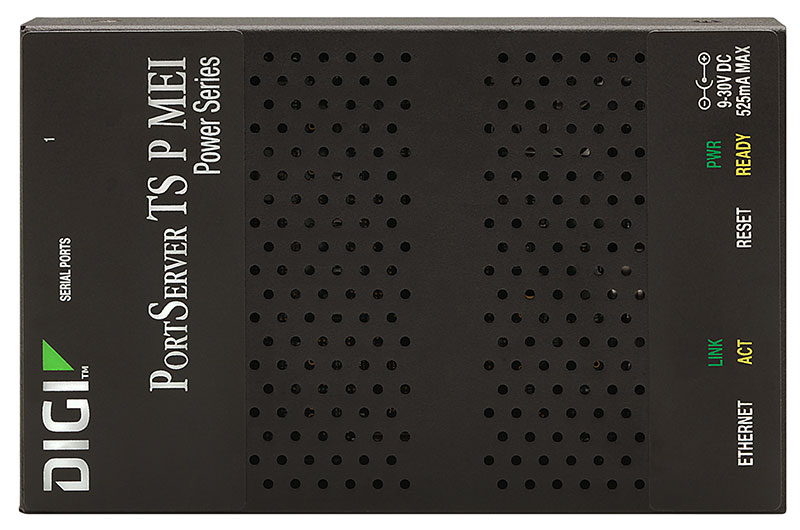

PortServer TS P MEI - Front

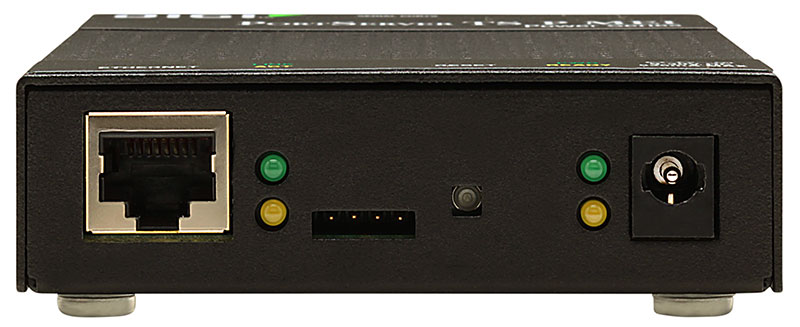

PortServer TS P MEI - Back
