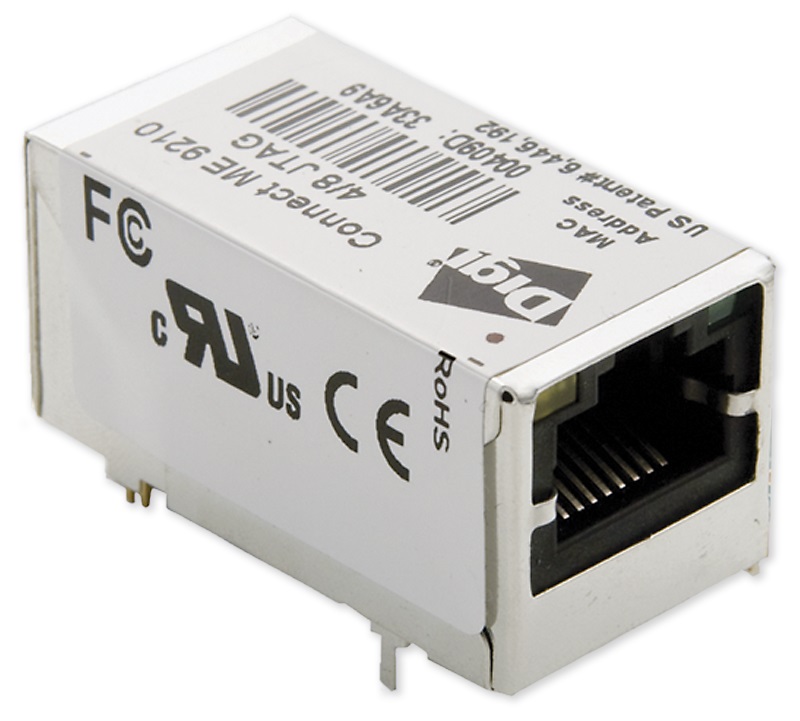

Digi Connect ME® 9210

NRND

Intelligent Ethernet Connectivity in RJ-45 Form Factor


  • Wired 10/100 Ethernet network interface
  • Industrial operating temperature
  • RJ-45 form factor compatible with Digi Connect Wi-ME
  • Support for Digi Embedded Linux and NET+OS
How to Buy

The Digi Connect ME 9210 is an ultra-compact embedded system-on-module (SoM) with 10/100 Ethernet support based on Digi's new and powerful 32-bit NS9210 processor (ARM9). The module allows customers to implement the next generation of leading network-enabled products and maintains full form factor and pin-compatibility with the existing Digi Connect ME family. Digi's own NET+ARM processor technology also delivers the true long-term availability that is a key requirement for embedded applications.

The Digi Connect ME 9210 can provide future application-specific interface options (CAN, 1-Wire, UART,etc.) through its unique on-chip Flexible Interface Module (FIM), while still keeping the main serial port or other peripheral interfaces available. The module is also suitable for more advanced main application processor applications with its support of up to ten shared GPIOs, external IRQs and an extended set of peripheral interface options such as I2C and SPI. The system-on-module also offers an industrial operating temperature.

Digi JumpStart Kits® are cost-effective, easy-to-use development solutions that minimize product design risks and shorten time-to-market. They leverage the reliability and flexibility of the royalty-free ThreadX-based NET+OS® platform, or the readily available library of software and community support of the Linux® environment.

Specifications Digi Connect ME® 9210
General
Processor Type 32-bit Digi NS9210 processor
ARM Core ARM926EJ-S
Processor Speed 75 MHz
Cache 4k I/D Cache
Memory Base Population 2/4 MB NOR flash
8 MB SDRAM
Flexible Interface Modules (FIMs) 300 MHz DRPIC165X CPU
2k program/192 bytes data RAM
On-chip 256-bit AES Accelerator
Power Management Modes On-the-fly clock scaling
Low-power sleep modes
Configurable scaling/wake-up events
(EIRQ, UART, Ethernet, etc.)
Pins/Form Factor RJ-45 connector style with 20-pin micro pin header (Samtec FTS-110-01-F-DV-TR)
High-Speed TTL Serial Interface Full signal support
(TXD, RXD, RTS, CTS, DTR, DSR and DCD)
Hardware/Software flow control
GPIO 10 shared
Up to 3 external IRQ options
SPI Master data rate up to 16.7 Mbps
Slave data rate up to 7.5 Mbps
I2C v1.0 bus interface
7-bit and 10-bit address modes
Flexible Interface Support (FIM) UART, 1-Wire, CAN
Watchdog Timer (16-bit)
JTAG Interface Available on development modules only (P/N DC-ME-Y401-JT, DC-ME-Y402-[LX]-JT)
On-Board Power Supervisor
Wave-Solderable Design No clean flux process
Dimensions (L x W x H) 1.445 in (36.7 mm) x 0.75 in (19.05 mm) x 0.735 in (18.67 mm)
Network Interface - Wired
Physical Layer 10/100Base-T
Data Rate 10/100 Mbps (auto-sensing)
Mode Full- or half-duplex (auto-sensing)
Connector RJ-45 w/ magnetics
PoE Power Pass-Through 802.3af compliant (Mid- and End-span)
Environmental
Operating Temperature -40° C to +80° C (-40° F to +176° F)
Storage Temperature -50° C to +125° C (-58° F to +257° F)
Relative Humidity 5% to 90% (non-condensing)
Power Requirements (3.3 VDC)
Maximum 450 mA (1.485 W)
Typical 346 mA (1.14 W)
UART and Ethernet activated
Idle 186 mA (613 mW)
/16 clock scaling, Ethernet activated
Sleep 34 mA (113 mW)
Wake-up on EIRQ, Ethernet PHY off
Regulatory Approvals
FCC Part 15 Class B, EN 55022 Class B
EN 61000-3-2 and EN 61000-3-3
ICES-003 Class B, VCCI Class II, AS 3548
FCC Part 15 Sub C Section 15.247
IC RSS-210 Issue 5 Section 6.2.2(o)
EN 300 328, EN 301 489-17
UL 60950-1, EN 60950 (EU)
CSA C22.2, No. 60950
EN 55024
Warranty
Product Warranty 3 years
