Digi XBee 3 USB Adapter

Digi XBee 3 USB Adapter provides local connectivity to wireless Digi XBee networks from a laptop or PC, enabling local commissioning of the network and its devices


  • Programmable to communicate with any of Digi's supported wireless protocols
  • Provides connectivity to local Digi XBee networks from a laptop/PC
  • Enables fast local commissioning of devices on the local network
  • USB powered
  • LEDs for UART traffic and network association
How to Buy

Digi XBee® 3 USB Adapter is an easy-to-use USB-to-Digi XBee Wireless Personal Area Network (WPAN) adapter, providing local connectivity to wireless networks. Simply plug Digi XBee 3 USB Adapter into the USB port of a laptop or PC for instant access to a Digi XBee network and its devices. This compact, USB-powered wireless adapter enables local network configuration, diagnostics and device monitoring.

Digi XBee 3 USB Adapter is part of Digi’s XBee family of solutions, providing wireless communication between devices, including routers and gateways. Digi XBee 3 USB Adapter uses Digi’s XBee 3 module which lets you program the desired protocol using the Digi XCTU software platform. The adapter connects with DigiMesh, 802.15.4 and Zigbee network protocols.

Digi XBee 3 USB Adapter and Digi XBee Network Assistant

Digi Network Assistant is a Windows-based free software download that works in tandem with Digi XBee 3 USB Adapter. Used together, these tools enable network technicians to perform a range of tasks on a local network, out in the field, whether or not network connectivity is available. These tasks may include administering on-site surveys and troubleshooting via the network mapping feature, reviewing the status of all nodes, and performing over-the-air firmware updates.

You can download and install Digi XBee Network Assistant at www.digi.com/xbeenetworkassistant.

Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
SPECIFICATIONS DIGI XBEE 3 USB ADAPTER
PERFORMANCE
OUTDOOR/RF LINE-OF-SIGHT RANGE* Up to 600 m (1968 ft)
TRANSMIT POWER OUTPUT (NOMINAL 25º C) 6.3 mW (8 dBm)
RF DATA RATE 250 Kbps
SERIAL INTERFACE DATA RATE (SOFTWARE SELECTABLE) 1200 bps - 921.6 Kbps
DIGI XBEE 3 RECEIVER SENSITIVITY -103 dBm
POWER REQUIREMENTS
SUPPLY VOLTAGE 5 V from PC USB port
TRANSMIT CURRENT 45 mA
RECEIVE CURRENT 26 mA
POWER-DOWN CURRENT Digi XBee 3 USB Adapter should not be put into sleep mode
GENERAL
FREQUENCY BAND 2.4 GHz ISM
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH, SMS)
DIMENSIONS (L x W x H) 5.83 cm x 2.03 cm x 1.12 cm (2.29 in x 0.80 in x 0.44 in)
OPERATING TEMPERATURE -40º C to 85º C (-40º F to 185º F)
CONNECTOR USB Type A
ANTENNA OPTIONS Internal only
NETWORKING & SECURITY
SUPPORTED NETWORK TOPOLOGIES DigiMesh, 802.15.4, Zigbee Mesh, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
NUMBER OF CHANNELS (SOFTWARE SELECTABLE) 16
ADDRESSING OPTIONS PAN, Channel, Address
REGULATORY APPROVALS
FCC PART 15.247 (USA) Approved, contains: MCQ-XBEE3
IC (CANADA) Approved, contains IC: 1846A-XBEE3
EUROPEAN COMPLIANCE CE Marked

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.

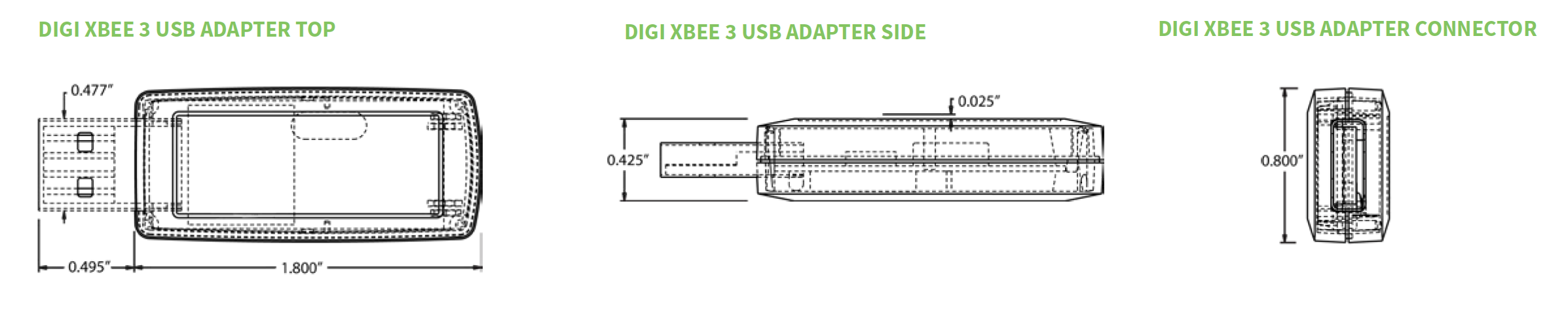

Line Art
