Digi XBee SX 868 RF Module

RF module family operates in the 863-870 MHz range delivering superior performance and interference immunity at 868 MHz


  • Low-power CE/RED certified 868 MHz RF module based on Silabs EFM32 and ADI7023
  • Design includes SAW filter for optimal performance in noisy RF environments
  • OTA and pin compatible with legacy Digi XBee® 868LP
  • Listen-Before-Talk and Frequency Agility for optimal interference immunity
  • DigiMesh® networking topology for redundancy and reliability
  • Simple configuration using XCTU® accelerates time to market
How to Buy

The Digi XBee® SX 868 is an 868 MHz RF module for Europe. The module can run either a proprietary DigiMesh® or point-to-multipoint networking protocol utilizing a low-power Silicon Labs microcontroller and an Analog Devices ADF7023 transceiver, along with an integrated SAW filter which offers industry-leading interference blocking. The Digi XBee SX 868 operates between 863 MHz and 870 MHz, making it deployable in several regions throughout the world including approved European countries.

The Digi XBee SX 868 also leverages 868 MHz and surrounding frequencies for LBT + AFA (Listen Before Talk and Adaptive Frequency Agility). This significantly reduces interference by listening to the radio environment before any transmission starts, and automatically shifting to a new channel when interference is detected. This patented frequency scan occurs automatically and in a matter of microseconds so as not to impact performance.

The Digi XBee SX 868 RF module is a complete hardware and software solution that works directly out of the box. XCTU®, Digi’s easy-to-use RF configuration tool, reduces development time from months to weeks, ensuring your product gets to market fast.

Key Industries

Precision Agriculture

Compare Sub-GHz Wireless OEM RF Modules

Compare Sub-GHz Wireless OEM RF Modules
Digi XBee Tools

Develop, Build, Deploy and Manage Your Digi XBee Network

Digi XBee® Tools

Digi XBee Tools support the complete IoT application lifecycle, from the evaluation, testing and prototyping phase through manufacturing and deployment to long-term network management. See how Digi XBee Tools simplify tasks and help get to market faster.

Discover Digi XBee Tools
Specifications Digi XBee SX 868
HARDWARE
PROCESSOR ADF7023 transceiver, Cortex®-M3 EFM32LG230F256 @ 48 MHz
FREQUENCY BAND 863 MHz to 870 MHz
ANTENNA OPTIONS U.FL, RF pad
PERFORMANCE
RF DATA RATE 10 Kbps or 80 Kbps, software selectable
UART DATA RATE Up to 921 Kbps
SPI DATA RATE Up to 6 Mbps
THEORETICAL LINE-OF-SIGHT RANGE* Up to 14.5 km w/ 2.1 dBi antenna
TRANSMIT POWER Up to 13 dBm ERP
RECEIVER SENSITIVITY -106 dBm @ 80 Kbps, -113 dBm @ 10 Kbps
FEATURES
I/O 13 Digital I/O
ANALOG INPUTS 4 channels 10-bit
OPERATING TEMPERATURE -40° C to 85° C (-40° F to 185° F)
NETWORKING TOPOLOGIES DigiMesh®, Repeater, Point-to-point, Point-to-multipoint, Peer-to-peer
SECURITY 128-bit AES Encryption
POWER
SUPPLY VOLTAGE 2.4 - 3.6 VDC
TRANSMIT CURRENT 55 mA
RECEIVE CURRENT 40 mA
SLEEP CURRENT 1.8 uA
REGULATORY APPROVALS
ETSI (EUROPE) CE/RED
ROHS Compliant

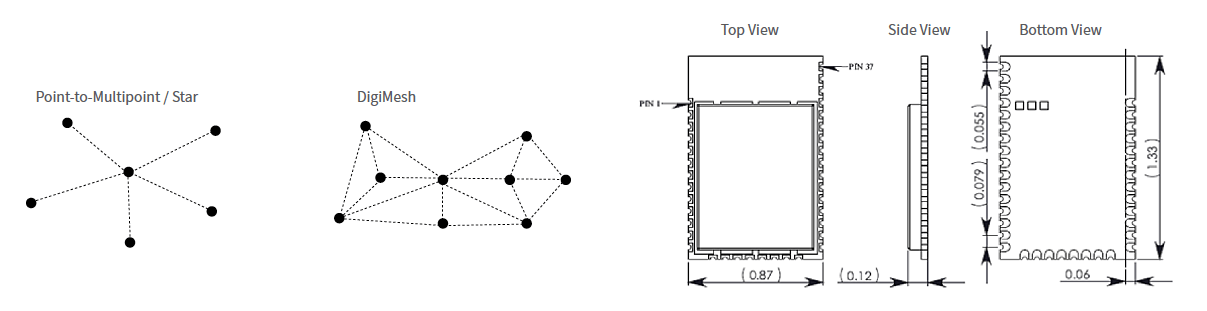

Line Art

*Range figure estimates are based on free-air terrain with limited sources of interference. Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of transmitting antenna, height of receiving antenna, weather conditions, interference sources in the area, and terrain between receiver and transmitter, including indoor and outdoor structures such as walls, trees, buildings, hills, and mountains.
