Digi ConnectCore 6UL SBC Pro

Powerful, secure, pre-certified connected Single Board Computer in standard form factor with complete design flexibility.


  • Powerful and flexible off-the-shelf solution in Pico-ITX form factor
  • Production-ready with minimal hardware design effort
  • Rugged design with industrial operating temperature range
  • Pre-certified dual-band 802.11ac Wi-Fi connectivity
  • Bluetooth® 5, with Bluetooth Low Energy support
  • Out-of-box support for cellular connectivity
  • On-board NFC Forum Type 2 compliant tag
  • Dual 10/100 Mbit Ethernet networking
  • Integrated display and camera capabilities
  • Rich interface and peripheral support
  • Complete Yocto Project® Linux® BSP with source code
  • Digi TrustFence® device security framework
How to Buy

Digi ConnectCore 6UL SBC Pro delivers the ultimate connected off-the-shelf NXP i.MX6UL single board computer with complete capabilities and unparalleled design flexibility.

Its unique pre-certified wireless connectivity options offer 802.11a/b/g/n/ac Wi-Fi and Bluetooth® 5, including Bluetooth Low Energy. Out-of-box cellular integration options using the pre-certified Digi XBee® Cellular modem or third party PCI Express Mini Card modem allows you to integrate cellular connectivity without the usual cost and complexity.

Digi’s complete Linux support includes the built-in Digi TrustFence® device security framework with support for secure boot, encrypted filesystems, protected ports, and more.

Build Secure Connected Embedded Devices Powered By Digi TrustFence

TrustFence

Device security is a critical design aspect for every connected device. The ConnectCore 6UL combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.

  • Managed device security software framework
  • U-Boot and Linux platform integration
  • Transparent and future-proof architecture
  • Zero implementation effort

Learn More

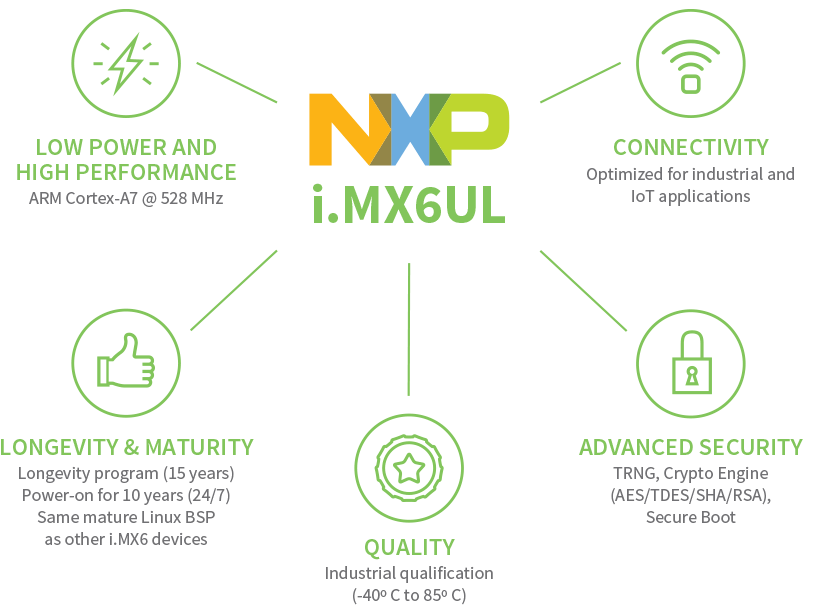

i.MX 6UltraLite

The most power efficient, lowest cost and smallest industrial i.MX6 family processor

Built on the NXP i.MX6UL application processor, the ConnectCore 6UL is the intelligent communication engine for today’s secure connected devices in industrial applications. It seamlessly integrates dual-Ethernet and pre-certified dual-band Wi-Fi (802.11a/b/g/n/ac) with Bluetooth 4.2 connectivity.

TrustFenceYocto ProjectBluetoothWi-Fi AllianceNXP Gold PartnerDigi XBeePowered by AWS

Related Resources

Five Tips for Successfully Developing IoT Applications Five Tips for Successfully Developing IoT Applications This field guide provides an overview of five ways to improve the design of your wireless IoT product, get to market faster, and increase the reliability of your solution. VIEW PDF A Practical Guide to RF for Embedded Designers A Practical Guide to RF for Embedded Designers Small, wireless devices are rapidly proliferating, driven by a vast and expanding spectrum of industrial and consumer applications. VIEW PDF IoT Device Security in Five Simple Steps IoT Device Security in Five Simple Steps Digi Chief Technology Officer (CTO) Joel Young, shares which questions to ask when planning an IoT Strategy and covers the five... WATCH VIDEO Press Release Digi International Ships ConnectCore 6UL SBC Pro Powerful Single Board Computer Provides Unparalleled Design Flexibility READ PRESS RELEASE Digi ConnectCore for i.MX6UL Low Power Application Demo Digi ConnectCore for i.MX6UL Low Power Application Demo This demonstration measures the low power consumption of the single-board computer, the System-on-Module, and the micro... WATCH VIDEO Connecting to Cloud Applications with Digi ConnectCore for i.MX6UL Connecting to Cloud Applications with Digi ConnectCore for i.MX6UL Digi Field Applications Engineer Manager, Martin Schulte-Hobein, shows Digi ConnectCore for 6UL, connected to the Microsoft... WATCH VIDEO Yocto Project: The Right Choice for Embedded Systems Design Yocto Project: The Right Choice for Embedded Systems Design VIEW PDF Digi XBee Cellular 3G Digi XBee Cellular 3G Digi XBee Cellular 3G embedded modems provide OEMs with a simple way to integrate HSPA/GSM cellular connectivity into their devices. VIEW PRODUCT ConnectCore SBC Selection Guide ConnectCore SBC Selection Guide DOWNLOAD PDF Digi ConnectCore 6UL SBC Pro Datasheet Digi ConnectCore 6UL SBC Pro Datasheet Secure and pre-certified Single Board Computer for total design flexibility and connectivity in industrial applications VIEW PDF Digi XBee Cellular LTE Cat 1 Digi XBee Cellular LTE Cat 1 Digi XBee Cellular LTE Cat 1 embedded modems provide OEMs with a simple way to integrate cellular connectivity into their devices VIEW PRODUCT Digi ConnectCore Embedded Feature Product Comparison Guide - SOMs and SBCs Digi ConnectCore Embedded Feature Product Comparison Guide - SOMs and SBCs Embedded Feature Comparison for ConnectCore 6UL, ConnectCore 6, ConnectCore 6+, ConnectCore 8M Nano, ConnectCore 8M Mini and ConnectCore 8X VIEW PDF Build vs Buy: Navigating the Choice Build vs Buy: Navigating the Choice In this white paper, we help you to evaluate the best way to optimize your IP and make the right build-vs.-buy decision to meet your goals. VIEW PDF

All related resources
Specifications Digi ConnectCore 6UL SBC PRO
PERFORMANCE*
APPLICATION PROCESSOR NXP i.MX6UL-2, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor
MEMORY 256 MB NAND flash, 256 MB DDR3 (CC-SBP-WMX-JN58); 1 GB NAND flash, 1 GB DDR (CC-SBP-WMX-JN7A)
WIRED NETWORK CONNECTIVITY
ETHERNET 2 x 10/100 Mbit Ethernet
WIRELESS NETWORK CONNECTIVITY
WI-FI Dual-band 802.11a/b/g/n/ac 1x1 (MCS 0-9)
BLUETOOTH Bluetooth 5, with Bluetooth Low Energy support
ANTENNAS On-module U.FL or on-board MMCX antenna connector for Wi-Fi and Bluetooth, external NFC antenna option
NFC Energy-harvesting NXP NTAG, field detection trigger, ISO 14443A and NFC Forum Type 2 Tag compliant
DIGI XBEE® RF Standard Digi XBee socket
PERIHPERALS/INTERFACES
ETHERNET 2 x RJ-45 (10/100 Mbit)
USB 2 x USB Host (dual Type-A), 1 x USB Host (6-pin header ), 1 x USB OTG (micro-USB)
DISPLAY 24-bit Parallel RGB (40-pin header), and 18-bit LVDS (20-pin header)
CAMERA 8-bit Parallel CSI (20-pin header)
GPIO 14-pin header (8 x GPIO, 1 x touch)
UART / CONSOLE 14-pin header (1 x two-wire, 2 x four-wire, one shared with XBee socket), 3-pin header (console)
OTHER CONNECTIVITY 1 x I2C (6-pin header), 1 x SPI (8-pin header), 2 x CAN (6-pin header)
PCI EXPRESS MINI CARD Half-size and full-size card support, with on-board Micro SIM slot support
RF CONTROL 14-pin header (Wi-Fi Enable/Disable, Bluetooth Enable/Disable, Wakeup, PCM, LTE Control, GPS Co-Existence)
EXTERNAL STORAGE microSD , on-board 4 GB eMMC flash for data storage
AUDIO 3.5 mm headphone jack, 6-pin header (speaker), 8-pin header (line-in, microphone, line-out)
BUTTONS / SWITCHES Power, Reset, User, Boot Select (NAND/microSD), RF (Wi-Fi Enable, Bluetooth Enable), Antenna Select (U.FL on-module/MMCX on-board)
DEBUG Tag-Connect for JTAG and SWD
POWER 3.3 V out (2-pin header), 5 V out (2-pin header), battery (2-pin header)
LEDS Power, 3 x User
CERTIFICATIONS**
RADIO APPROVALS US, Canada, EU, Japan, Australia, New Zealand
EMISSIONS / IMMUNITY / SAFETY FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (UL/UL equivalent)
POWER REQUIREMENTS
SUPPLY VOLTAGE 5 V @ 3.2 A (typical, depending on use case); see ConnectCore 6UL module product brief for module-only power consumption guidance
POWER CONNECTORS Locking barrel connector (2 mm), or dedicated power connector (3-pin header)
ENVIRONMENTAL
OPERATING TEMPERATURE -40° C to 85° C (-40° F to 185° F)
STORAGE TEMPERATURE -50° C to +125° C (-58° C to 257° F)
RELATIVE HUMIDITY Relative humidity 5% to 90% (non-condensing)
DESIGN VERIFICATION Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT
MECHANICAL
DIMENSIONS 100 mm x 72 mm (4.0 in x 2.83 in)
WARRANTY
PRODUCT WARRANTY 1 year

* Populates ConnectCore 6UL module P/N CC-WMX-JN58-NE (LGA mounting).
** Final certifications pending .

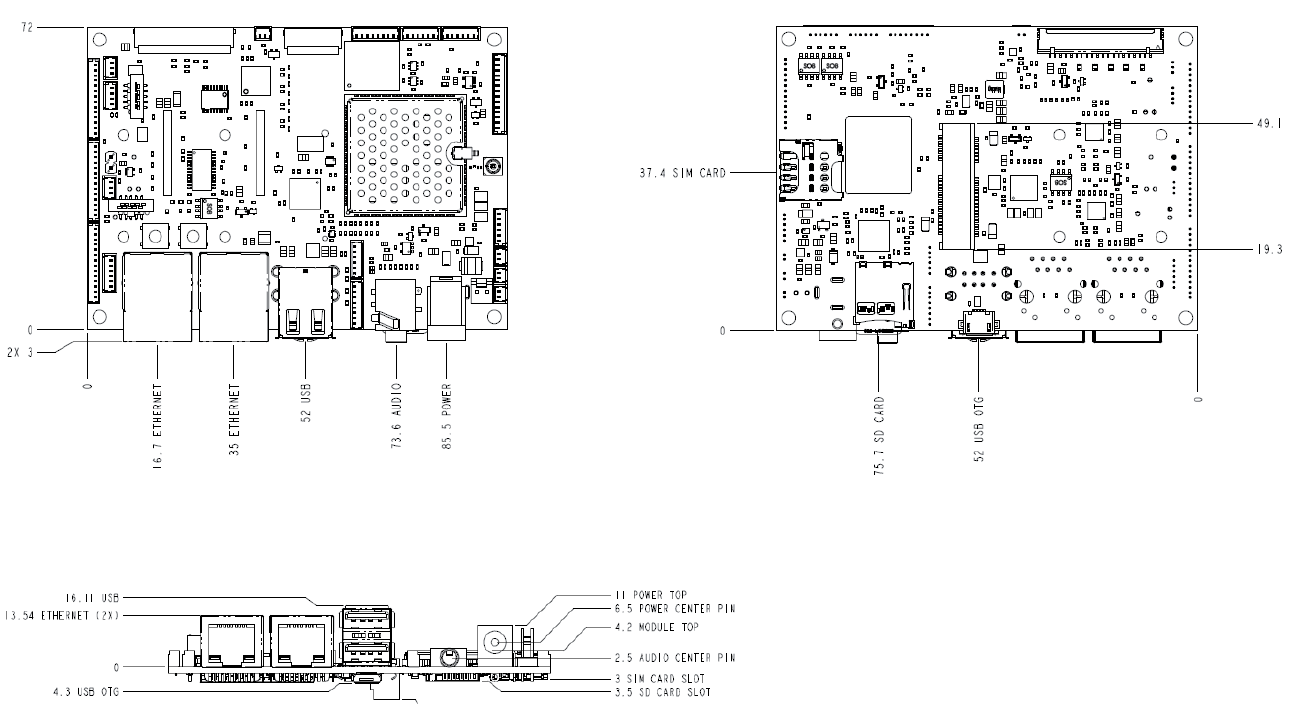

Mechanical Drawings
