| General |
| Application Processor |
On-board ConnectCore 6 multi-chip module with NXP i.MX6Quad/i.MX6Dual/i.MX6DualLite, Industrial (800 MHz) and extended commercial (1.2 GHz) options |
| Memory |
4 GB eMMC, 512 MB/1GB DDR (64-bit) |
| Graphics |
Multi-stream-capable HD video engine with 1080p60 decode, 1080p30 encode and 3D video playback in HD in high-performance families
Superior 3D graphics performance with up to 4 shaders at 200 Mt/s w/ OpenCL support
Separate 2D and/or Vertex acceleration engines for UI support
Stereoscopic image sensor support for 3D imaging. |
| Security |
RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP) |
| Displays |
1 x HDMI (Type A)
2 x LVDS with backlight control and I2C touch interface (Hirose DF14A-20P-1.25H and Molex 53047-1410)
1 x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A)
1 x MIPI-DSI with backlight control and I2C touch interface (Omron XF2M-2015-1A) |
| Camera |
1 x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A)
1 x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410)
1 x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI) |
| USB 2.0 |
2 x USB Host (Dual Type A)
1 x USB OTG (Micro AB)
1 x USB Host (Molex 53047-0610) |
| Audio |
1 x Line-In (3.5 mm stereo jack, CUI SJ1-3515-SMT)
1 x Line-In, 1 x Line-Out, 1 x Mic-In (Molex 53047-0810)
On-board Freescale SGTL5000 audio codec |
| Console (RS232) |
Molex 53047-0310 |
| SATA 3.0 |
3M 5607-5102-SH |
| Micro-SIM |
Yes |
| PCI Express Mini Card |
Foxconn AS0B226-S68Q-7H
Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals
Supports mounting of half-size and full-size PCI Express Mini Cards |
| Boot Configuration |
eMMC / SD / SATA |
| XBee Socket |
Samtec MMS-110-01-L-SV |
| Wi-Fi |
802.11a/b/g/n: 2.412 - 2.484 GHz, 4.900 - 5.850 GHz
802.11b: 1, 2, 5.5, 11 Mbps (17 dBm typical ±2 dBm)
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps (15 dBm typical ±2 dBm)
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (12 dBm typical ±2 dBm), HT40, MCS 0-7
Security: WEP, WPA-PSK/WPA2-Personal, WPA/WPA2 Enterprise, 802.11i, Access Point Mode, Wi-Fi Direct
Industry Certifications: Wi-Fi Alliance Logo Certification Ready, CCXv4 ASD Ready |
| Bluetooth |
Class 1.5, Bluetooth 2.1 + EDR, Bluetooth 3.0 + HS 802.11 AMP, Bluetooth Low Energy Profiles: GAP, SPP, HSP, HFP, FTP, PAN, OPP, HID, A2DP, AVRCP, HDP |
| Antenna Connectors |
1 x U.FL / 2 x U.FL |
| Gigabit Ethernet |
RJ-45, with 2 LEDs for link/speed/activity |
| CAN Bus |
2 x FlexCAN (Molex 53047-0610) |
| GPIO/I2C/SPI/UART |
1 x GPIO (8 x i.MX GPIOs + 4 Kinetis GPIOs, Molex 53047-1410)
1 x I2C (Molex 53047-0310), 1 x SPI (Molex 53047-0610)
3 x UART (4-wire TX/RX/RTS/CTS, 1 shared with XBee socket, Molex 53047-1410) |
| Debug |
1 x JTAG for i.MX6 (FCI 20021111-00010T4LF)
1 x SWD for Digi MCA (FCI 20021111-00010T4LF)
Headers populated on development units only
Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL) |
| Power Button |
Power on, power off, sleep, wake-up |
| Reset Button |
Yes |
| User LEDs |
1 x Red, 1 x Yellow, 1 x Green |
| Coin Cell Connector |
Molex 53047-0210 |
| Supply Voltage |
5 V @ 3.2 A (typical, depending on use-case) |
| Power Supply Connector |
Main power supply via 2mm locking barrel connector |
| Operating Temperature |
-20° C to 70° C (-4° F to 158° F) / -40° C to 85° C (-40° F to 185° F) |
| Storage Temperature |
-50° C to 125° C (-58° F to 257° F) |
| Relative Humidity |
5% to 90% (non-condensing) |
| Radio Approvals |
US, Canada, EU, Japan, Australia/New Zealand |
| Emissions / Immunity / Safety |
FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent) |
| Operational Reliability |
Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT |

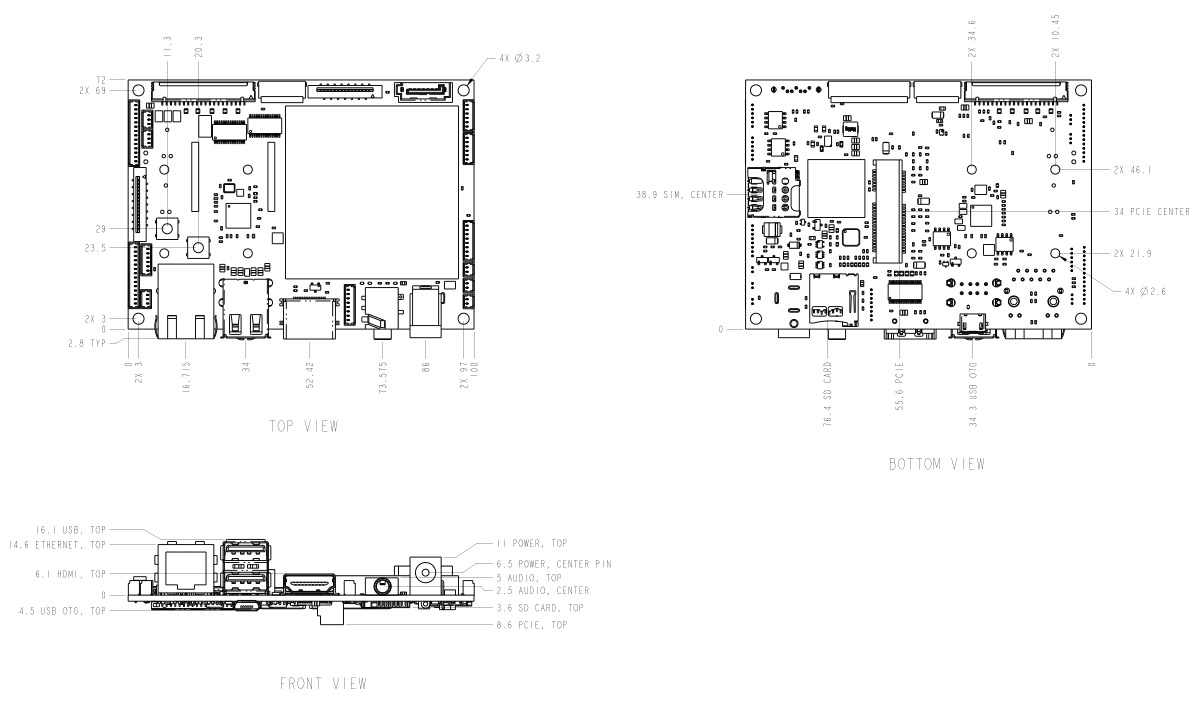

| Mechanical Dimensions |
Pico-ITX form factor, 72 mm x 100 mm |
| Product Warranty |
1-year |
