Digi ConnectCore 6+ SBC

NXP i.MX6Plus based surface-mount module solution with scalable, quad-core performance and integrated wireless connectivity


  • Compact off-the-shelf SBC
  • Scalable capabilities and i.MX6Plus performance
  • Gigabit Ethernet and pre-certified dual-band 802.11ac + Bluetooth® 5
  • Seamless cellular modem and Digi XBee® integration
  • Complete set of available peripherals and interfaces with customization options
  • Designed for flexibility and reliability
  • Yocto Linux and Android software platform support
  • Industrial operating temperature available
How to Buy

Digi ConnectCore 6+ SBC is an ultra-compact and versatile off-the-shelf single board computer (SBC). It offers significantly reduced time to market by virtually eliminating the traditional risk, effort and complexity of custom board designs without sacrificing flexibility or capabilities.

Built on the Digi ConnectCore 6+ module, it provides a common platform with scalable NXP i.MX6Plus performance, pre-certified Bluetooth® 5 and Wi-Fi integration, Digi XBee RF module and cellular connectivity options, Gigabit Ethernet support, multi display/camera and audio support, external storage, expansion connectors and reliability in harsh environments.

Leading and innovative features such as the Digi Microcontroller Assist™ (MCA) enable the development of connected products with highly optimized power footprints. Optional Digi Remote Manager® integration provides secure remote management and device health capabilities for the Internet of Things.

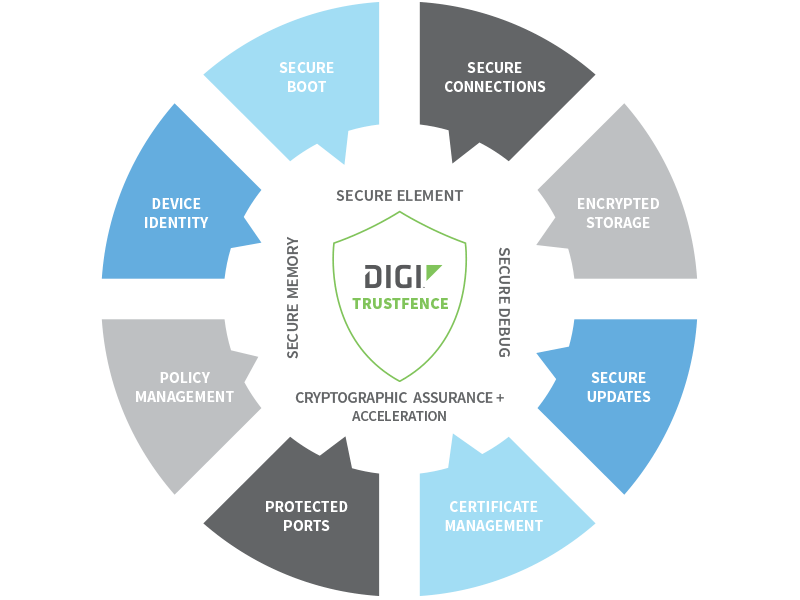

Build Secure Connected Embedded Devices Powered by Digi TrustFence

TrustFence

Device security is a critical design aspect for every connected device. The ConnectCore 6 combines a secure module platform with a complete embedded device security software framework. Build products today that provide you and your customers with a secure product platform now and in the future.

  • Managed device security software framework
  • U-Boot and Linux platform integration
  • Transparent and future-proof architecture
  • Zero implementation effort

Learn More

TrustFenceYocto ProjectBluetoothWi-Fi AllianceNXP Gold PartnerPowered by AWSAndroid

Digi Product Integration

Digi WDS engineers can customize Digi hardware components and software products to accelerate your time to market.
SPECIFICATIONS Digi ConnectCore® 6+ SBC
APPLICATION PROCESSOR NXP i.MX6Plus encompasses a quad-core Arm® Cortex®-A9 platform running up to 1.0 GHz with 1 MB of L2 cache, and optimized 64-bit DDR3 or 2-ch., 32-bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express® and SATA-2 provide excellent connectivity
MEMORY 8 GB eMMC, 2 GB DDR (64-bit)
PMIC Dialog DA9063
GRAPHICS LVDS, MIPI display port, MIPI camera port and HDMI v1.4
SECURITY RNG, TrustZone, Ciphers, Security Cntrl, Secure RTC, Secure JTAG, eFuses (OTP)
PERIPHERALS/INTERFACES MMC 4.4/SD 3.0 x3MMC 4.4/SDXC, UART x5 (5 Mbps), MIPI HSI, S/PDIF Tx/Rx, I2C x3, SPI x5, ESAI, I2S/SSI x3, FlexCAN x2, MLB150 + DTCP, S-ATA and PHY (3 Gbps), USB2 OTG and PHY, USB 2.0 Host and PHY, USB 2.0 HSIC Host x2, PWM, 3.3V GPIO, Keypad, PCIe 2.0 (x1 lane), HDMI and PHY, MIPI DSI, MIPI CSI2, 20-bit CSI, 24-bit RGB, LVDS (x2), RTC, External address/data bus, Watchdog, Timers, JTAG
EXTERNAL BUS 26-bit address / up to 32-bit data (multiplexed and non-multiplexed modes)
DISPLAYS 1 x HDMI (Type A)
2 x LVDS with backlight control and I2C touch interface (HIROSE DF14A-20P-1.25H)
1 x Parallel LCD (24-bit) with backlight control and I2C touch interface (Omron XF2M-4015-1A)
1 x MIPI-DSI with backlight control and I2C touch interface (FCI SFW15S-2STE1LF, compatible with Raspberry Pi DSI)
CAMERA 1 x 8-Bit Parallel Camera Interface 1 (Omron XF2M-2015-1A)
1 x 8-Bit Parallel Camera Interface 0 (Molex 53047-1410)
1 x MIPI CSI-2 (FCI SFW15S-2STE1LF, compatible with Raspberry Pi CSI)
USB 2.0 2 x Ux USB OTG (Micro AB); 1 x USB Host (Molex 53047-0610)
AUDIO 1 x Line-In
(3.5 mm stereo jack, CUI SJ1-3515-SMT) 1 x Line-In, 1 x Line-Out, 1 x Mic-In
(Molex 53047-0810) On-board NXP SGTL5000 audio codec
CONSOLE (RS-232) Yes
SATA 3.0 Yes
MICRO-SIM Yes
PCI EXPRESS MINI CARD Provides PCI Express x1, USB 2.0 Host, I2C, SIM, Reset, Wake-Up signals
Supports mounting of half-size and full-size PCI Express Mini Cards
BOOT CONFIGURATION eMMC / SD / SATA
DIGI XBEE SOCKET Yes
WI-FI 802.11a/b/g/n/ac
BLUETOOTH Bluetooth 5
ON-MODULE MICROCONTROLLER Digi Microcontroller Assist (MKL14Z32VFT4)
ANTENNA CONNECTORS 1 x U.FL (on SOM)
ETHERNET Gigabit Ethernet
CAN BUS 2 x FlexCAN (Molex 53047-0610)
GPIO/I2C/SPI/UART 1 x GPIO (8 x i.MX GPIOs + 4 MCA GPIOs - Molex 53047-1410)
1 x I2C (Molex 53047-0310), 1 x SPI (Molex 53047-0610)
3 x UART (4-wire TX/RX/RTS/CTS, 1 shared with Digi XBee socket, Molex 53047-1410)
DEBUG 1 x JTAG for i.MX6 (FCI 20021111-00010T4LF)
1 x SWD for MCA (FCI 20021111-00010T4LF)
Headers populated on development units only, Production units without header for plug of nails (Tag-Connect TC2050-IDC-NL)
POWER BUTTON Power on, power off, sleep, wake-up
RESET BUTTON Yes
USER LEDS 1 x Red, 1 x Yellow, 1 x Green
COIN CELL CONNECTOR Yes
SUPPLY VOLTAGE 5 V @ 3.2 A (typical, depending on use-case)
POWER SUPPLY CONNECTOR Main power supply via 2mm locking barrel connector
OPERATING TEMPERATURE -40° C to 85° C (-40° F to 185° F)
STORAGE TEMPERATURE -50° C to 125° C (-58° F to 257° F)
RELATIVE HUMIDITY 5% to 90% (non-condensing)
RADIO APPROVALS US, Canada, EU, Australia/New Zealand
EMISSIONS / IMMUNITY / SAFETY FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B,
VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o),
EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety UL/UR (or equivalent)
DESIGN VERIFICATION Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT
MECHANICAL DIMENSIONS LGA-400, 2 mm pitch, fully shielded (heat-spreading)
