4 FAQs for Your First Digi XBee® Cellular Development Kit

Digi XBee Cellular is the latest member of the Digi XBee family, a family that includes a wide range of RF protocols and standards designed to meet the needs of users, makers, and Original Equipment Manufactures (OEMs). These wireless modules have evolved into generations of series options to choose from depending on the application, firmware configuration, hardware design, and networking protocol.

Supported by the Digi XBee ecosystem, Digi XBee Cellular is not just hardware, but includes software (XCTU for configurations), and libraries of resources, community and support services (WDS for antenna design). But, the primary benefit of Digi XBee Cellular is that it is pre-certified and ready for OEMs to quickly and securely integrate cellular connectivity into their solutions and devices. While still sharing the same Digi XBee footprint and software interface across many wireless technologies, users have the design flexibility to switch between wireless protocols or frequencies as needed.

We know designing devices with cellular connectivity that meets the compliance standards of cellular carriers presents its challenges. This is why we designed the Digi XBee Cellular development kit to make is simple and quick for OEMs, hardware and software engineers, corporate technologist, educators, and students to successfully integrate embedded cellular.

Below are frequently asked questions and answers to get started with your first Digi XBee Cellular dev kit, and did we mention 6 months of free data?

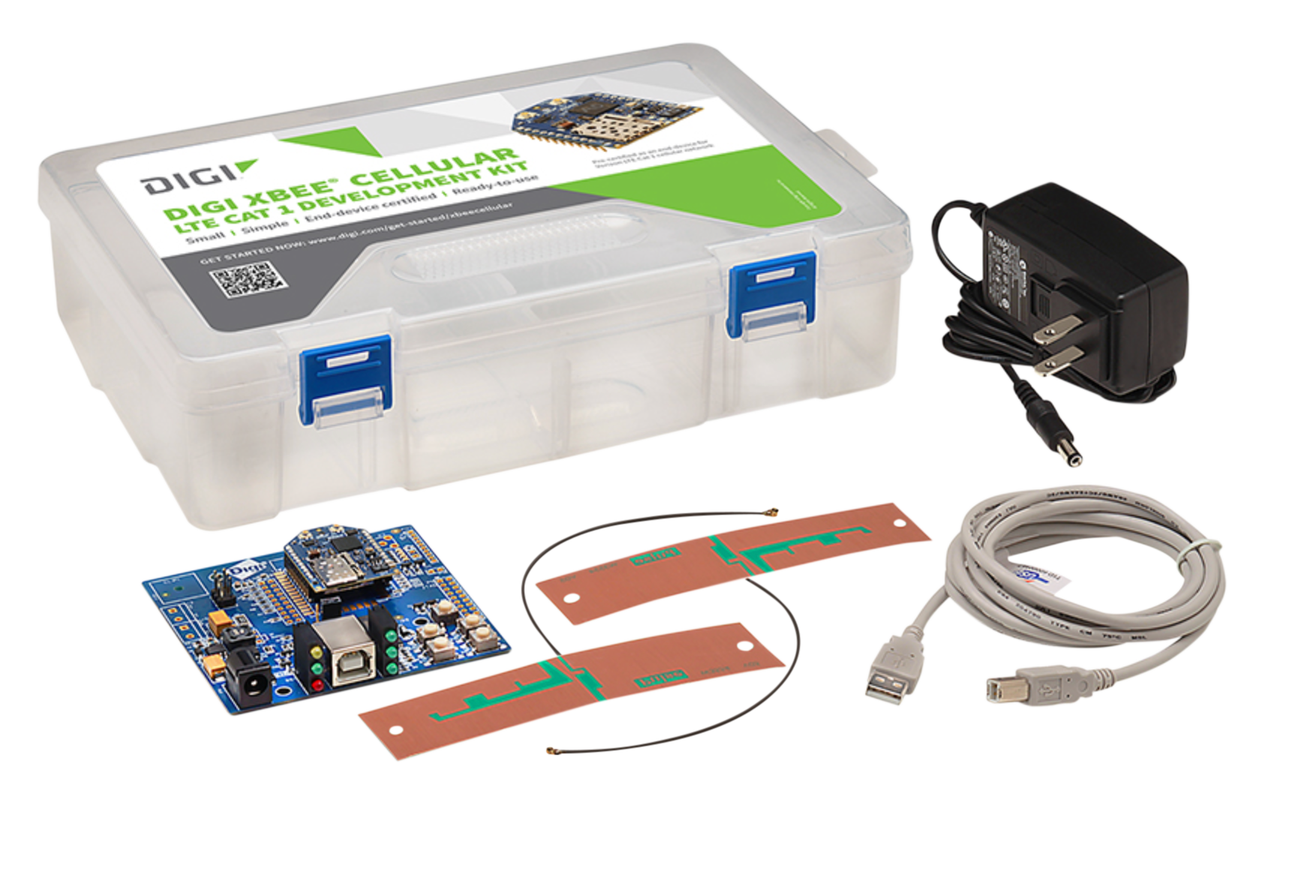

1. What’s in the Digi XBee Cellular Development Kit?

• Digi XBee Cellular LTE Cat 1 embedded modem

• 1 Digi XBee development board

• 1 LTE Cat 1 SIM for Verizon

• 6 months of free cellular service

• Antennas and power supply

2. If only one antenna is used, will the Digi XBee Cellular Modem still be carrier end-device certified?

Yes. The modem has been certified for both single and dual antenna configurations. More information on antenna specification requirements can be found in the User Guide. And, Digi WDS can help with integrated antenna designs for your enclosure.

3. The development kit includes 6 months of free cellular data service. How much data can I use per month?

6 months of free cellular service will be limited to 5MB/month and recommended to use 100 SMS per month or less. The kit is for testing purposes only, not for production.

4. How much current does Digi XBee Cellular use in Deep Sleep mode?

Digi XBee Cellular only uses 10uA of current in Deep Sleep mode making it ideal for battery and solar powered applications.
